LHA-03-TS

Active

Adam Tech

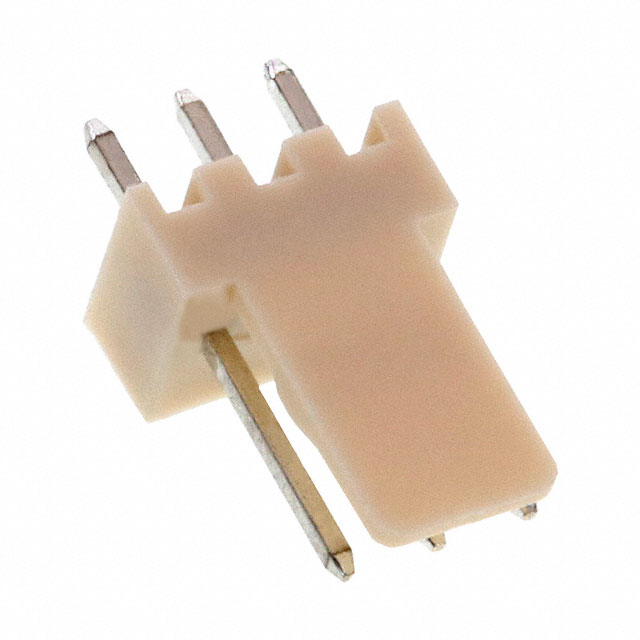

CONN HEADER VERT 3POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-03-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.291 in
Contact Length - Mating	7.4 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Ivory
Insulation Height	0.134 in
Insulation Height	3.4 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Current Rating (Amps)	Insulation Material	Contact Type	Shrouding	Number of Rows	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Connector Type	Contact Material	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Style	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech LHA-03-TS	250 VAC	14.2 mm	0.559 in	Tin	3 A	Nylon Polyamide (PA)	Male Pin	Shrouded - 1 Wall	1	0.134 in	3.4 mm	Ivory	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.291 in	7.4 mm	Board to Cable/Wire	Through Hole	UL94 V-2	-25 °C	85 °C
Adam Tech LHA-03-TRA	250 VAC			Tin	3 A	Polyamide (PA66) Nylon 6/6	Male Pin	Shrouded - 1 Wall	1	0.228 in	5.8 mm	White	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.276 in	7 mm	Board to Cable/Wire	Through Hole Right Angle	UL94 V-2	-40 °C	105 ░C
Adam Tech LHA-03-TRB	250 VAC			Tin	3 A	Polyamide (PA66) Nylon 6/6	Male Pin	Shrouded - 1 Wall	1	0.228 in	5.8 mm	White	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.293 in	7.45 mm	Board to Cable/Wire	Through Hole Right Angle	UL94 V-2	-25 °C	85 °C
