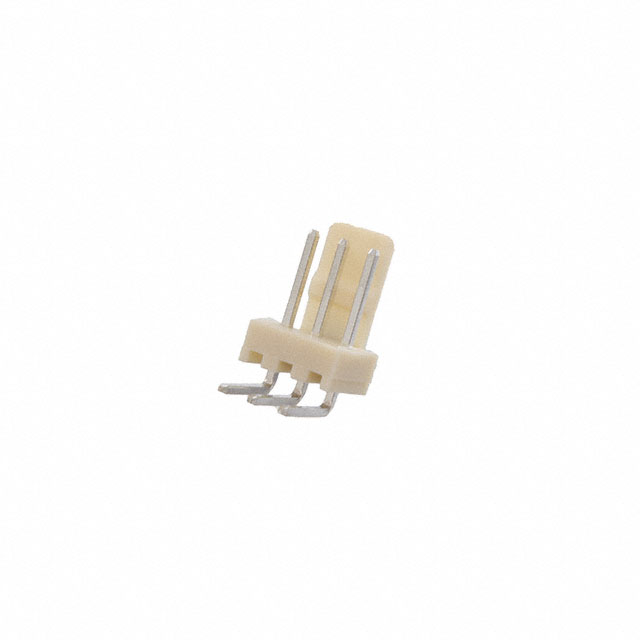

LHA-03-TRA

Active

Adam Tech

CONN HEADER R/A 3POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHA-03-TRA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Current Rating (Amps)	Insulation Material	Contact Type	Shrouding	Number of Rows	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Termination	Connector Type	Contact Material	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Style	Mounting Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech LHA-03-TS	250 VAC	14.2 mm	0.559 in	Tin	3 A	Nylon Polyamide (PA)	Male Pin	Shrouded - 1 Wall	1	0.134 in	3.4 mm	Ivory	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.291 in	7.4 mm	Board to Cable/Wire	Through Hole	UL94 V-2	-25 °C	85 °C
Adam Tech LHA-03-TRA	250 VAC			Tin	3 A	Polyamide (PA66) Nylon 6/6	Male Pin	Shrouded - 1 Wall	1	0.228 in	5.8 mm	White	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.276 in	7 mm	Board to Cable/Wire	Through Hole Right Angle	UL94 V-2	-40 °C	105 ░C
Adam Tech LHA-03-TRB	250 VAC			Tin	3 A	Polyamide (PA66) Nylon 6/6	Male Pin	Shrouded - 1 Wall	1	0.228 in	5.8 mm	White	Friction Lock	0.1 in	2.54 mm	Square	Solder	Header	Brass	All	0.134 in	3.4 mm	0.293 in	7.45 mm	Board to Cable/Wire	Through Hole Right Angle	UL94 V-2	-25 °C	85 °C
