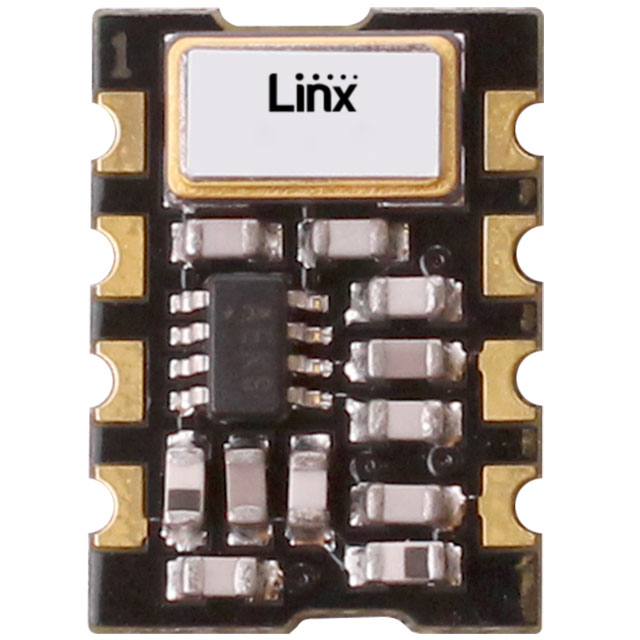

TXM-315-LR

Active

TE Connectivity Linx

RF TX IC ASK/OOK 315MHZ 8SMD MOD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TX IC ASK/OOK 315MHZ 8SMD MOD

Technical Specifications

Parameters and characteristics for this part

Specification	TXM-315-LR

Antenna Connector	Castellation
Applications	Remote Control, Lighting, Home/Industrial Automation, Security, RKE
Current - Transmitting	8.5 mA
Data Interface	Serial
Data Rate (Max) [Max]	10 kbps
Frequency	315 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module
Power - Output [Max]	4 dBm
Power - Output [Min]	-4 dBm
Supplier Device Package	Module
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

Part	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Frequency	Antenna Connector	Power - Output [Max]	Power - Output [Min]	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Data Rate (Max)	Modulation or Protocol	Mounting Type	Data Rate (Max) [Max]	Power - Output	Features
TE Connectivity Linx TXM-315-LC	Module	8-SMD Module	5.2 V	2.7 V	Home/Industrial Automation Lighting Remote Control RKE Security	315 MHz	Castellation	4 dBm	-4 dBm	5.2 mA	70 °C	-30 ░C	Serial	5 kbps	ASK OOK	Surface Mount
TE Connectivity Linx TXM-315-LR	Module	8-SMD Module	3.6 V	2.1 V	Home/Industrial Automation Lighting Remote Control RKE Security	315 MHz	Castellation	4 dBm	-4 dBm	8.5 mA	85 °C	-40 °C	Serial		ASK OOK	Surface Mount	10 kbps
TE Connectivity Linx TXM-315-KH3	Module	27-SMD Module	5.2 V	2.7 V	Home/Industrial Automation Lighting Remote Control RKE	315 MHz	Castellation			2.7 mA	70 °C	-30 ░C	Parallel		ASK OOK	Surface Mount		4 dBm	Built-in Remote Control Encoder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transmitter ASK, OOK 315MHz -4dBm ~ 4dBm 10kbps Castellation Antenna 8-SMD Module
