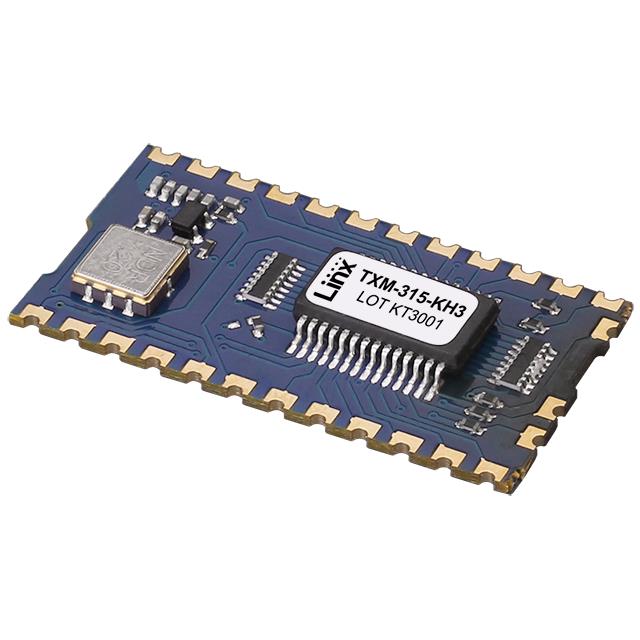

TXM-315-KH3

Active

TE Connectivity Linx

RF TX IC ASK 315MHZ 27SMD MOD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TX IC ASK 315MHZ 27SMD MOD

Technical Specifications

Parameters and characteristics for this part

Specification	TXM-315-KH3

Antenna Connector	Castellation
Applications	Remote Control, RKE, Home/Industrial Automation, Lighting
Current - Transmitting	2.7 mA
Data Interface	Parallel
Features	Built-in Remote Control Encoder
Frequency	315 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Package / Case	27-SMD Module
Power - Output	4 dBm
Supplier Device Package	Module
Voltage - Supply [Max]	5.2 V
Voltage - Supply [Min]	2.7 V

Part	Supplier Device Package	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Frequency	Antenna Connector	Power - Output [Max]	Power - Output [Min]	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Data Rate (Max)	Modulation or Protocol	Mounting Type	Data Rate (Max) [Max]	Power - Output	Features
TE Connectivity Linx TXM-315-LC	Module	8-SMD Module	5.2 V	2.7 V	Home/Industrial Automation Lighting Remote Control RKE Security	315 MHz	Castellation	4 dBm	-4 dBm	5.2 mA	70 °C	-30 ░C	Serial	5 kbps	ASK OOK	Surface Mount
TE Connectivity Linx TXM-315-LR	Module	8-SMD Module	3.6 V	2.1 V	Home/Industrial Automation Lighting Remote Control RKE Security	315 MHz	Castellation	4 dBm	-4 dBm	8.5 mA	85 °C	-40 °C	Serial		ASK OOK	Surface Mount	10 kbps
TE Connectivity Linx TXM-315-KH3	Module	27-SMD Module	5.2 V	2.7 V	Home/Industrial Automation Lighting Remote Control RKE	315 MHz	Castellation			2.7 mA	70 °C	-30 ░C	Parallel		ASK OOK	Surface Mount		4 dBm	Built-in Remote Control Encoder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	260	$ 18.76

General part information

RF Transmitter ASK, OOK 315MHz 4dBm Castellation Antenna 27-SMD Module
