178-015-513R691

Active

MH Connectors

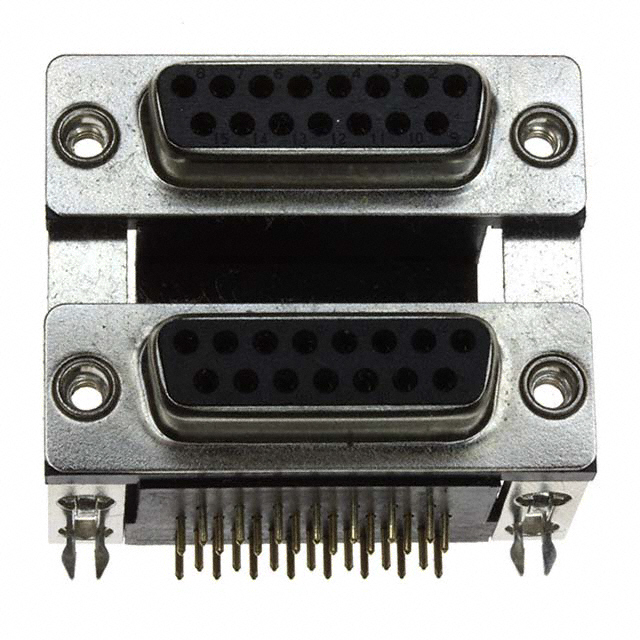

STACKED D SUB CONNECTOR, 178 SERIES, DA, RECEPTACLE, 15 CONTACTS, DA, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet White Papers EN +2

178-015-513R691

Active

MH Connectors

STACKED D SUB CONNECTOR, 178 SERIES, DA, RECEPTACLE, 15 CONTACTS, DA, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet White Papers EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	178-015-513R691

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

178-015 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Dielectric Material	Mounting Type	Contact Finish Thickness	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Color	Contact Finish	Connector Type	Termination	Number of Rows	Contact Type	Backset Spacing	Backset Spacing	Contact Form	Material Flammability Rating	Connector Style	Flange Feature	Features
MH Connectors 178-015-313R481	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Plug Male Pins Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Grounding Indents Shielded
MH Connectors 178-015-512-571	2	2	15	Polyester Glass Filled	Panel Mount Right Angle Through Hole	Flash		105 ░C	-55 °C	5 A	Brass	Black	Gold	Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Board Lock Shielded
MH Connectors 178-015-413R491	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Plug Male Pins Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Housing/Shell (4-40)	Board Lock Grounding Indents Shielded
MH Connectors 178-015-613R571	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Male Pins Plug	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Shielded
MH Connectors 178-015-513R691	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Housing/Shell (4-40)	Board Lock Shielded
MH Connectors 178-015-513R671	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Board Lock Shielded
MH Connectors 178-015-413R691	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Plug Male Pins Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Housing/Shell (4-40)	Board Lock Grounding Indents Shielded
MH Connectors 178-015-313R571	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A		Black	Gold	Plug Male Pins Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Shielded
MH Connectors 178-015-613R481	2	2	15	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Flash	Nickel Plated Steel	105 ░C	-55 °C	5 A	Brass	Black	Gold	Male Pins Plug	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Grounding Indents Shielded
MH Connectors 178-015-312-571	2	2	15	Polyester Glass Filled	Panel Mount Right Angle Through Hole	Flash		105 ░C	-55 °C	5 A	Brass	Black	Gold	Plug Male Pins Receptacle Female Sockets	Solder	2	Signal	8.08 mm	0.318 "	Stamped	UL94 V-0	D-Sub - Stacked	Female Screwlock (4-40) Mating Side	Board Lock Grounding Indents Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	245	$ 7.17
Newark	Each	100	$ 9.49
		250	$ 8.60
		500	$ 7.16

Description

General part information

178-015 Series

15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
