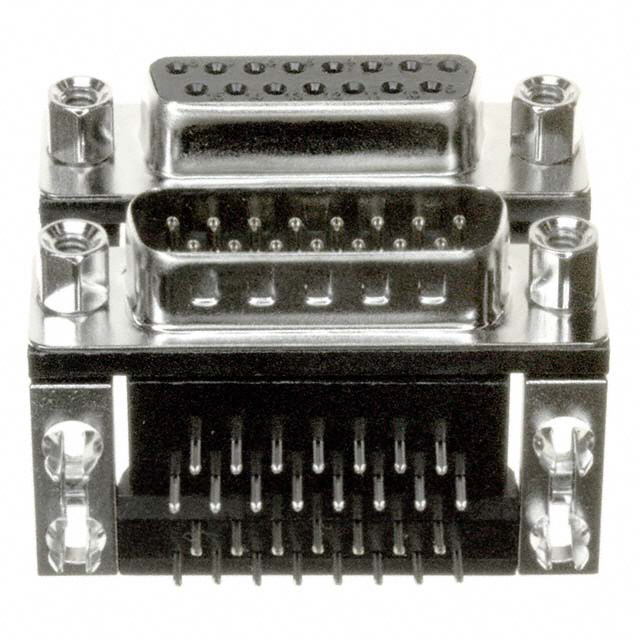

178-015-313R571
ActiveMH Connectors
D SUBMINIATURE CONNECTOR, 15 CONTACT(S), FEMALE-MALE, SOLDER TERMINAL, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
178-015-313R571
ActiveMH Connectors
D SUBMINIATURE CONNECTOR, 15 CONTACT(S), FEMALE-MALE, SOLDER TERMINAL, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 178-015-313R571 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets, Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | 2 |
| Shell Size, Connector Layout [custom] | 2 |
| Termination | Solder |
178-015 Series
| Part | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Dielectric Material | Mounting Type | Contact Finish Thickness | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Material | Color | Contact Finish | Connector Type | Termination | Number of Rows | Contact Type | Backset Spacing | Backset Spacing | Contact Form | Material Flammability Rating | Connector Style | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Plug Male Pins Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Grounding Indents Shielded |
MH Connectors | 2 | 2 | 15 | Polyester Glass Filled | Panel Mount Right Angle Through Hole | Flash | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Board Lock Shielded | |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Plug Male Pins Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Housing/Shell (4-40) | Board Lock Grounding Indents Shielded |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Male Pins Plug | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents Shielded |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Housing/Shell (4-40) | Board Lock Shielded |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Board Lock Shielded |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Plug Male Pins Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Housing/Shell (4-40) | Board Lock Grounding Indents Shielded |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Black | Gold | Plug Male Pins Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents Shielded | |
MH Connectors | 2 | 2 | 15 | Polyamide (PA9T) Nylon 9T | Panel Mount Right Angle Through Hole | Flash | Nickel Plated Steel | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Male Pins Plug | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Grounding Indents Shielded |
MH Connectors | 2 | 2 | 15 | Polyester Glass Filled | Panel Mount Right Angle Through Hole | Flash | 105 ░C | -55 °C | 5 A | Brass | Black | Gold | Plug Male Pins Receptacle Female Sockets | Solder | 2 | Signal | 8.08 mm | 0.318 " | Stamped | UL94 V-0 | D-Sub - Stacked | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
178-015 Series
The 178 series 0.75-inch spacing right angle Dual-port D-sub Connectors with high performance stamped contacts, male to male connector. It has brass contacts with gold flash-plating, glass-filled thermoplastic insulator and nickel-plated, steel shell. It provides proper mating while maximizing available board space.
