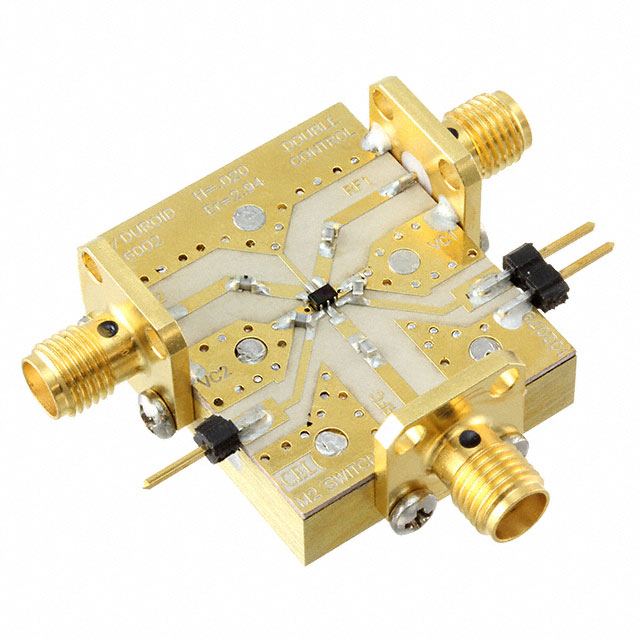

CG2179M2-EVAL

Active

CEL

EVAL BOARD FOR CG2179M2

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2179M2

Technical Specifications

Parameters and characteristics for this part

Specification	CG2179M2-EVAL

For Use With/Related Products	CG2179M2
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	For Use With/Related Products	Type	Supplied Contents	RF Type	Package / Case	Isolation	Voltage - Supply [Min]	Voltage - Supply [Max]	Insertion Loss	Frequency Range [Max]	Frequency Range [Min]	IIP3	Supplier Device Package	Circuit	Impedance	Test Frequency
CEL CG2179M2-EVAL	CG2179M2	Switch SPDT	Board(s)
CEL CG2179M2-C4				802.11b/g/n/ac	6-SMD Gull Wing	23 dB	1.8 V	5 V	0.45 dB	3 GHz	50 MHz	58 dBm	6-Minimold	SPDT	50 Ohms	3 GHz
CEL CG2179M2					6-SMD		1.8 V	5 V	0.45 dB	3 GHz	50 MHz		6-Minimold	SPDT	50 Ohms	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CG2179M2 - Switch, SPDT 50MHz ~ 3GHz Evaluation Board
