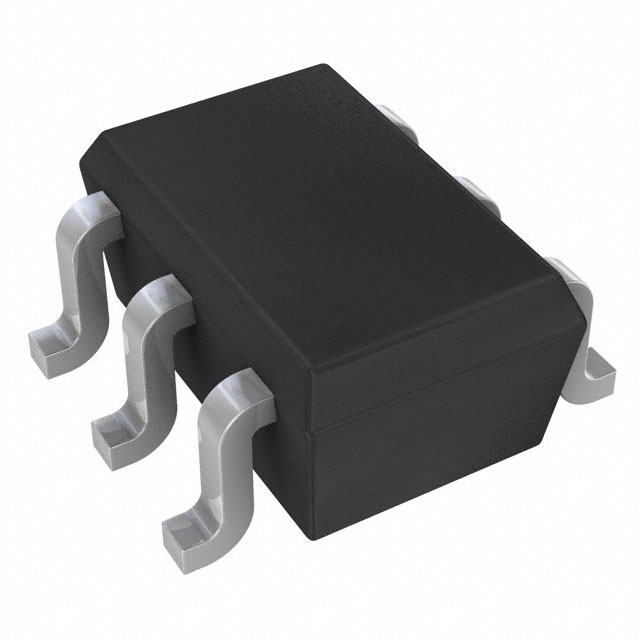

CG2179M2-C4
ActiveCEL
IC RF SWITCH SPDT 3GHZ 6MINIMOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG2179M2-C4
ActiveCEL
IC RF SWITCH SPDT 3GHZ 6MINIMOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG2179M2-C4 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 50 MHz |
| IIP3 | 58 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.45 dB |
| Isolation | 23 dB |
| Package / Case | 6-SMD, Gull Wing |
| RF Type | 802.11b/g/n/ac |
| Supplier Device Package | 6-Minimold |
| Test Frequency | 3 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.34 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 1.34 | ||
| 10 | $ 0.84 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.34 | |||
| Tape & Reel (TR) | 10000 | $ 0.32 | ||
| 20000 | $ 0.30 | |||
| 30000 | $ 0.30 | |||
Description
General part information
CG2179 Series
RF Switch IC 802.11b/g/n/ac SPDT 3 GHz 50Ohm 6-Minimold
