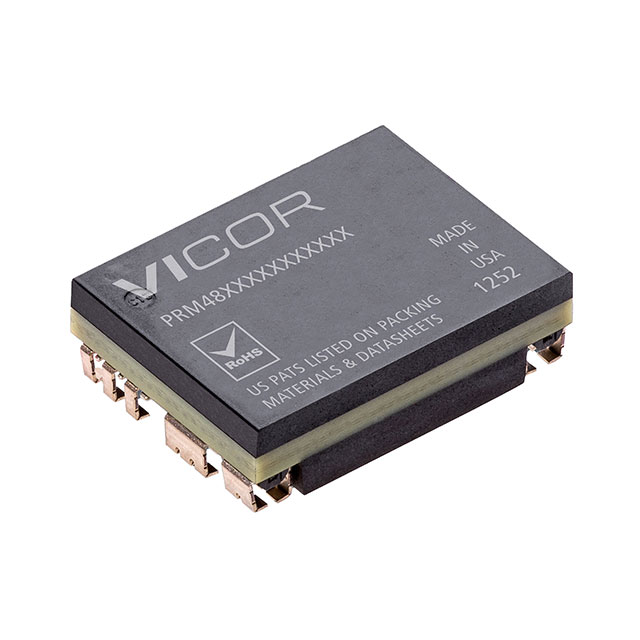

PRM48BH480M250A00

Active

Vicor Corporation

DC DC CONVERTER 48V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRM48BH480M250A00

Active

Vicor Corporation

DC DC CONVERTER 48V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRM48BH480M250A00

Applications	ITE (Commercial)
Current - Output (Max) [Max]	5.21 A
Efficiency	96.7 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Module
Power (Watts)	250 W
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.87 in
Size / Dimension [y]	0.65 in
Size / Dimension [y]	16.5 mm
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Pre-Regulator Module
Voltage - Input (Min) [Min]	38 V
Voltage - Output 1	48 V

PRM48 Series

Part	Features	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Applications	Efficiency	Number of Outputs	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
Vicor Corporation PRM48BF480M600A00	OCP OTP OVP SCP UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Surface Mount	Module	ITE (Commercial)	97.6 %	1	600 W	Pre-Regulator Module	125 °C	-40 °C	38 V	12.5 A
Vicor Corporation PRM48BT480M500A00	Remote On/Off UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Through Hole	16-DIP Module	ITE (Commercial)	97.8 %	1	500 W	Pre-Regulator Module	125 °C	-55 °C	38 V	10.42 A
Vicor Corporation PRM48BF480T600A00	OCP OTP OVP SCP UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Surface Mount	Module	ITE (Commercial)	97.6 %	1	600 W	Pre-Regulator Module	125 °C	-40 °C	38 V	12.5 A
Vicor Corporation PRM48AT480M400A00	Remote On/Off UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Through Hole	16-DIP Module	ITE (Commercial)	97.5 %	1	400 W	Pre-Regulator Module	125 °C	-55 °C	36 V	8.33 A	75 V
Vicor Corporation PRM48BF480T400B00	OCP OTP OVP SCP UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Surface Mount	Module	ITE (Commercial)	97 %	1	400 W	Pre-Regulator Module	125 °C	-40 °C	38 V	11 A
Vicor Corporation PRM48AH480T200A00	Remote On/Off UVLO	48 V	6.7 mm	0.26 "	0.87 in	16.5 mm	0.65 in	22 mm	Surface Mount	Module	ITE (Commercial)	96.7 %	1	200 W	Pre-Regulator Module	125 °C	-40 °C	36 V	4.17 A	75 V
Vicor Corporation PRM48BH480M250A00	OCP OTP OVP Remote On/Off SCP UVLO	48 V	6.7 mm	0.26 "	0.87 in	16.5 mm	0.65 in	22 mm	Surface Mount	Module	ITE (Commercial)	96.7 %	1	250 W	Pre-Regulator Module	125 °C	-55 °C	38 V	5.21 A
Vicor Corporation PRM48BF480T500A00	Remote On/Off UVLO	48 V	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	Surface Mount	Module	ITE (Commercial)	97.8 %	1	500 W	Pre-Regulator Module	125 °C	-40 °C	38 V	10.42 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 167.62

Description

General part information

PRM48 Series

Pre-Regulator Module DC DC Converter 1 Output 48V 5.21A 38V - 55V Input

Documents

Technical documentation and resources
