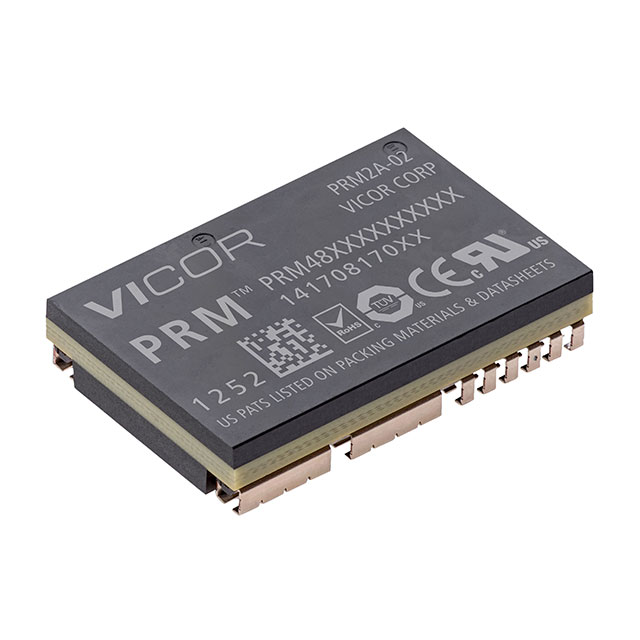

PRM48BT480M500A00
ObsoleteVicor Corporation
DC DC CONVERTER 48V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRM48BT480M500A00
ObsoleteVicor Corporation
DC DC CONVERTER 48V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRM48BT480M500A00 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10.42 A |
| Efficiency | 97.8 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-DIP Module |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 1.28 in |
| Size / Dimension [x] | 32.5 mm |
| Size / Dimension [y] | 22 mm |
| Size / Dimension [y] | 0.87 in |
| Size / Dimension [z] | 6.7 mm |
| Size / Dimension [z] | 0.26 " |
| Type | Pre-Regulator Module |
| Voltage - Input (Min) [Min] | 38 V |
| Voltage - Output 1 | 48 V |
PRM48 Series
| Part | Features | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Package / Case | Applications | Efficiency | Number of Outputs | Power (Watts) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vicor Corporation | OCP OTP OVP SCP UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Surface Mount | Module | ITE (Commercial) | 97.6 % | 1 | 600 W | Pre-Regulator Module | 125 °C | -40 °C | 38 V | 12.5 A | |
Vicor Corporation | Remote On/Off UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Through Hole | 16-DIP Module | ITE (Commercial) | 97.8 % | 1 | 500 W | Pre-Regulator Module | 125 °C | -55 °C | 38 V | 10.42 A | |
Vicor Corporation | OCP OTP OVP SCP UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Surface Mount | Module | ITE (Commercial) | 97.6 % | 1 | 600 W | Pre-Regulator Module | 125 °C | -40 °C | 38 V | 12.5 A | |
Vicor Corporation | Remote On/Off UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Through Hole | 16-DIP Module | ITE (Commercial) | 97.5 % | 1 | 400 W | Pre-Regulator Module | 125 °C | -55 °C | 36 V | 8.33 A | 75 V |
Vicor Corporation | OCP OTP OVP SCP UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Surface Mount | Module | ITE (Commercial) | 97 % | 1 | 400 W | Pre-Regulator Module | 125 °C | -40 °C | 38 V | 11 A | |
Vicor Corporation | Remote On/Off UVLO | 48 V | 6.7 mm | 0.26 " | 0.87 in | 16.5 mm | 0.65 in | 22 mm | Surface Mount | Module | ITE (Commercial) | 96.7 % | 1 | 200 W | Pre-Regulator Module | 125 °C | -40 °C | 36 V | 4.17 A | 75 V |
Vicor Corporation | OCP OTP OVP Remote On/Off SCP UVLO | 48 V | 6.7 mm | 0.26 " | 0.87 in | 16.5 mm | 0.65 in | 22 mm | Surface Mount | Module | ITE (Commercial) | 96.7 % | 1 | 250 W | Pre-Regulator Module | 125 °C | -55 °C | 38 V | 5.21 A | |
Vicor Corporation | Remote On/Off UVLO | 48 V | 6.7 mm | 0.26 " | 1.28 in | 22 mm | 0.87 in | 32.5 mm | Surface Mount | Module | ITE (Commercial) | 97.8 % | 1 | 500 W | Pre-Regulator Module | 125 °C | -40 °C | 38 V | 10.42 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PRM48 Series
Pre-Regulator Module DC DC Converter 1 Output 48V 10.42A 38V - 55V Input
