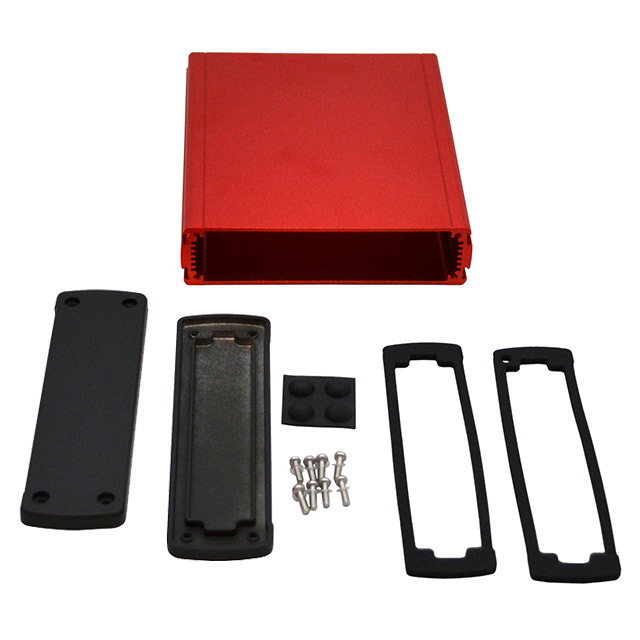

EXN-23361-RD

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Technical Specifications

Parameters and characteristics for this part

Part	Design	Area (L x W)	Area (L x W)	Weight	Weight	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Material	Height [z]	Height [z]	Features	Ratings	Thickness	Thickness	Container Type
BUD INDUSTRIES EXN-23361-GDP	End Panel(s)	248 cm²	38.4 in²	0.86 lb	390.09 g	Clear Gold	146.6 mm	6.654 "	5.772 "	169 mm	UL94 V-0	Aluminum with Plastic Metal Polycarbonate Panels	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box
BUD INDUSTRIES EXN-23361-RD	End Panel(s)	248 cm²	38.4 in²	1 lbs	453.59 g	Black Red	146.6 mm	6.654 "	5.772 "	169 mm		Aluminum Metal	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box
BUD INDUSTRIES EXN-23361-GD	End Panel(s)	248 cm²	38.4 in²	1 lbs	453.59 g	Black Gold	146.6 mm	6.654 "	5.772 "	169 mm		Aluminum Metal	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum Black, Red End Panel(s) 6.654" L x 5.772" W (169.00mm x 146.60mm) X 1.638" (41.60mm)
