EXN-23361-GDP

Active

BUD INDUSTRIES

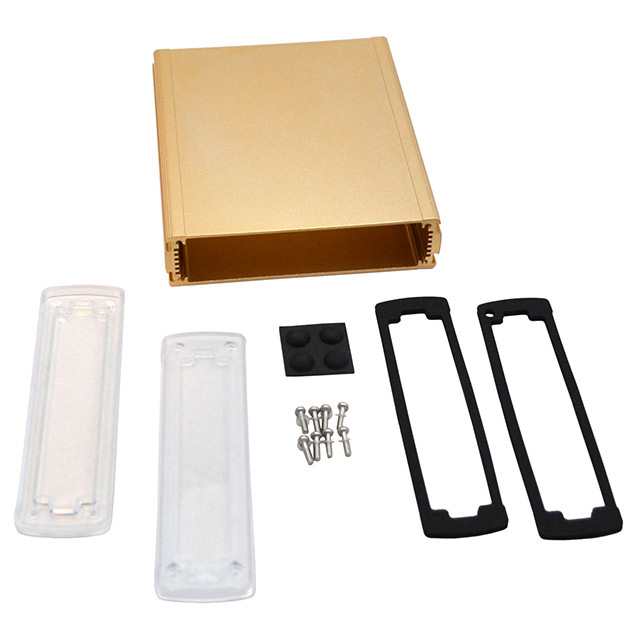

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 41.61 MM, 129 MM, 146.6 MM

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 41.61 MM, 129 MM, 146.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23361-GDP

Area (L x W)	248 cm²
Area (L x W)	38.4 in²
Color	Clear, Gold
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	41.6 mm
Height [z]	1.638 in
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	6.654 "
Size / Dimension [x]	169 mm
Size / Dimension [y]	146.6 mm
Size / Dimension [y]	5.772 "
Thickness	0.091 in
Thickness	2.3 mm
Weight	0.86 lb
Weight	390.09 g

Part	Design	Area (L x W)	Area (L x W)	Weight	Weight	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Material	Height [z]	Height [z]	Features	Ratings	Thickness	Thickness	Container Type
BUD INDUSTRIES EXN-23361-GDP	End Panel(s)	248 cm²	38.4 in²	0.86 lb	390.09 g	Clear Gold	146.6 mm	6.654 "	5.772 "	169 mm	UL94 V-0	Aluminum with Plastic Metal Polycarbonate Panels	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box
BUD INDUSTRIES EXN-23361-RD	End Panel(s)	248 cm²	38.4 in²	1 lbs	453.59 g	Black Red	146.6 mm	6.654 "	5.772 "	169 mm		Aluminum Metal	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box
BUD INDUSTRIES EXN-23361-GD	End Panel(s)	248 cm²	38.4 in²	1 lbs	453.59 g	Black Gold	146.6 mm	6.654 "	5.772 "	169 mm		Aluminum Metal	41.6 mm	1.638 in	Card Guides Sealing Gaskets	IP66	0.091 in	2.3 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Clear, Gold End Panel(s) 6.654" L x 5.772" W (169.00mm x 146.60mm) X 1.638" (41.60mm)
