NEMA-5-1-A

Active

Adam Tech

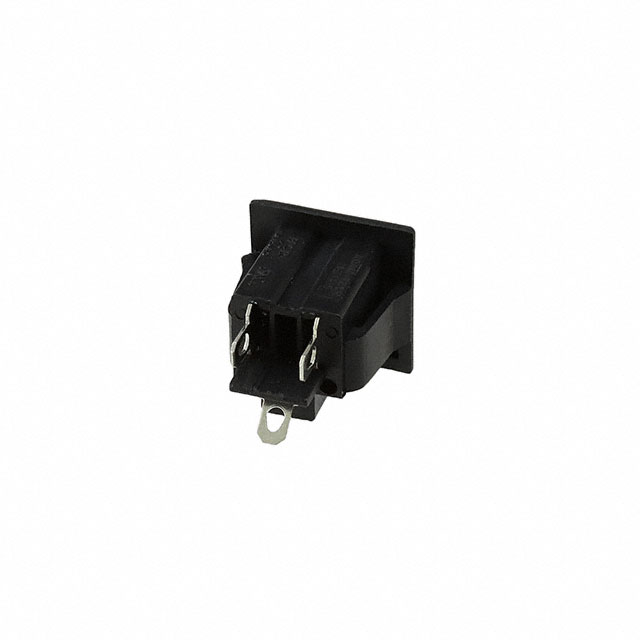

RECEPTACLE, PANEL SNAP, SOLDER H

Search across all available documentation for this part.

Active

Adam Tech

RECEPTACLE, PANEL SNAP, SOLDER H

Technical Specifications

Parameters and characteristics for this part

Specification	NEMA-5-1-A

Connector Style	NEMA 5-15R
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	15 A
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating	125 VAC

Part	Connector Style	Material Flammability Rating	Connector Type	Current Rating (Amps)	Mounting Type	Voltage Rating	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Adam Tech NEMA-5-3-RA-AN4860-1-065	NEMA 5-15R	UL94 V-0	Receptacle Female Sockets	15 A	Flange Panel Mount	125 VAC	Solder
Adam Tech NEMA-5-1-A	NEMA 5-15R	UL94 V-0	Receptacle Female Sockets	15 A	Panel Mount Snap-In	125 VAC	Quick Connect	0.187 "	4.7 mm
Adam Tech NEMA-5-3-HW	NEMA 5-15R	UL94 V-0	Receptacle Female Sockets	15 A	Panel Mount Snap-In	125 VAC	IDC			24.3 mm	24.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Connector Receptacle, Female Sockets NEMA 5-15R Panel Mount, Snap-In
