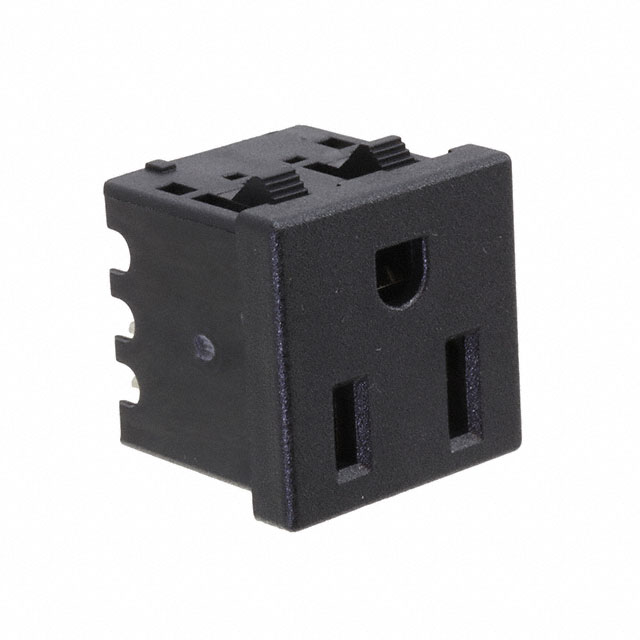

NEMA-5-3-HW
ActiveAdam Tech
RECEPTACLE, PANEL SNAP, HORIZONT
Deep-Dive with AI
Search across all available documentation for this part.
NEMA-5-3-HW
ActiveAdam Tech
RECEPTACLE, PANEL SNAP, HORIZONT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NEMA-5-3-HW |
|---|---|
| Connector Style | NEMA 5-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating (Amps) | 15 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 24.3 mm |
| Panel Cutout Dimensions [y] | 24.3 mm |
| Termination | IDC |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.45 | |
| 10 | $ 1.10 | |||
| 25 | $ 0.99 | |||
| 40 | $ 0.94 | |||
| 80 | $ 0.87 | |||
| 230 | $ 0.78 | |||
| 440 | $ 0.76 | |||
Description
General part information
NEMA-5 Series
Power Connector Receptacle, Female Sockets NEMA 5-15R Panel Mount, Snap-In
