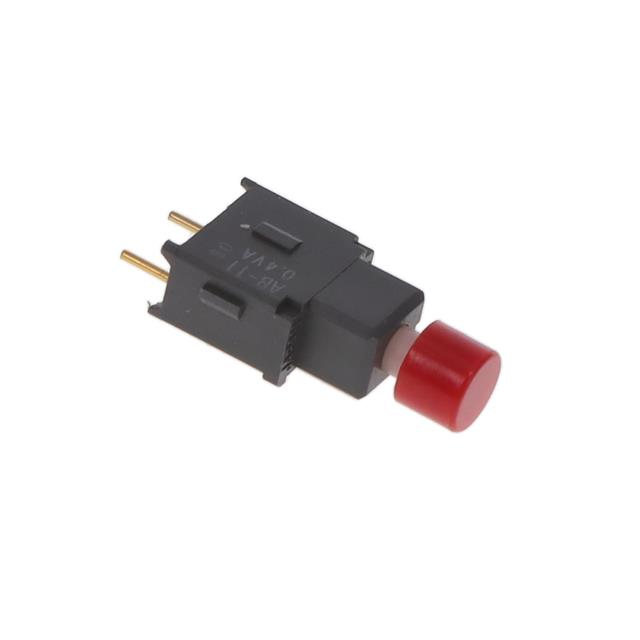

AB11BP-FC
ActiveNKK Switches
PROCESS SEALED SUBMINIATURE PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB11BP-FC
ActiveNKK Switches
PROCESS SEALED SUBMINIATURE PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB11BP-FC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
AB11BP Series
| Part | Termination Style | Switch Function | Color - Actuator/Cap | Electrical Life | Features | Voltage Rating - AC | Actuator Type | Circuit | Voltage Rating - DC | Current Rating (Amps) | Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | PC Pin | Off-Mom | Black | 50000 Cycles | Sealed - Fully | 28 V | Button Round | SPST-NO | 28 V | 0.4 VA | Standard | -30 ░C | 85 °C | No Marking | Through Hole |
NKK Switches | PC Pin | Off-Mom | Red | 50000 Cycles | Sealed - Fully | 28 V | Button Round | SPST-NO | 28 V | 0.4 VA | Standard | -30 ░C | 85 °C | No Marking | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AB11BP Series
Pushbutton Switch SPST-NO Standard Through Hole
