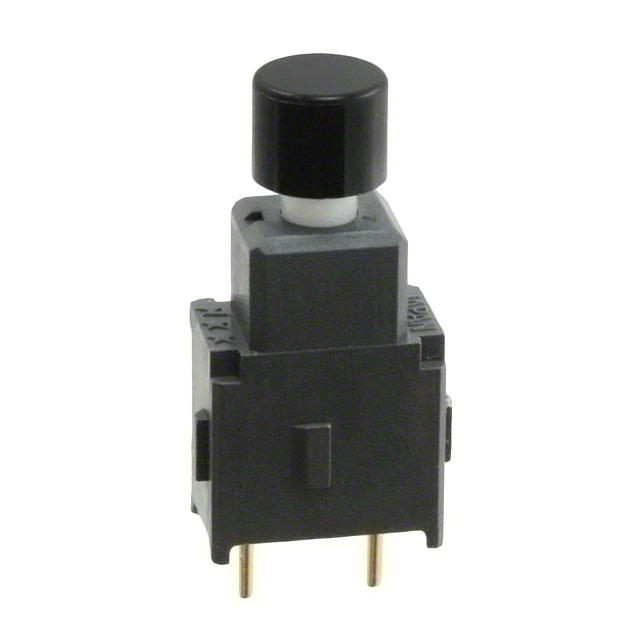

AB11BP-FA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Switch Function	Color - Actuator/Cap	Electrical Life	Features	Voltage Rating - AC	Actuator Type	Circuit	Voltage Rating - DC	Current Rating (Amps)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Mounting Type
NKK Switches AB11BP-FA	PC Pin	Off-Mom	Black	50000 Cycles	Sealed - Fully	28 V	Button Round	SPST-NO	28 V	0.4 VA	Standard	-30 ░C	85 °C	No Marking	Through Hole
NKK Switches AB11BP-FC	PC Pin	Off-Mom	Red	50000 Cycles	Sealed - Fully	28 V	Button Round	SPST-NO	28 V	0.4 VA	Standard	-30 ░C	85 °C	No Marking	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Through Hole
