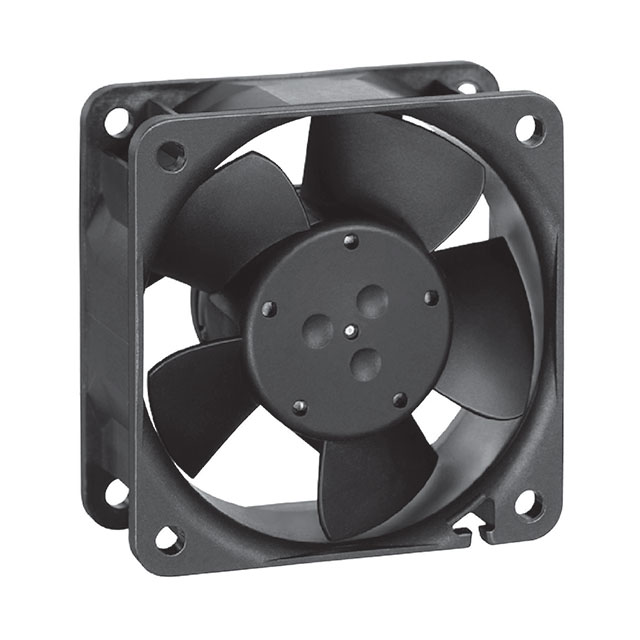

612NHU-181

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

612NHU-181

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 12VDC WIRE

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	612NHU-181

Air Flow	0.708 m³/min
Air Flow	25.3 CFM
Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	37 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.8 W
RPM	5600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	8 VDC
Weight	66.22 g
Weight	0.146 lb
Width [y]	25.4 mm

612N Series

DC Fans Tubeaxial, 60x25mm, 24VDC, 20.6CFM, 1.4W, 28dB, 4100RPM, Ball, Open Speed Signal

Part	Material - Blade	Voltage - Rated	RPM	Bearing Type	Air Flow	Air Flow	Approval Agency	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Termination	Fan Type	Power (Watts)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Weight	Weight	Operating Temperature [Max]	Features	Operating Temperature	Operating Temperature	Current Rating (Amps)	Static Pressure	Static Pressure	Ingress Protection
ebm-papst Inc. 612NGMI	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	4100 RPM	Sintec	0.577 mł/min	20.6 CFM	CE CSA UL VDE	25.4 mm	8 VDC	12.6 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.7 W	80000 Hrs	-20 °C	-20 C	65 °C	65 °C	31 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612NGLE	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	2500 RPM	Sintec	0.314 m³/min	11.2 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	0.58 W	80000 Hrs					27 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612NH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.759 m³/min	27.1 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	2 W	70000 Hrs	-20 °C	-20 C		70 °C	37 dB	84.82 g	0.187 lb	70 °C
ebm-papst Inc. 612NMLE	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	3000 RPM	Ball	0.412 mł/min	14.7 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	0.4 W	80000 Hrs					19 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612N/2ML	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC		Ball				25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	0.8 W						35 dB	86.18 g	0.19 lb		Speed Sensor (Tach)	70 °C	70 °C
ebm-papst Inc. 612NGH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Sintec	0.708 m³/min	25.3 CFM	CE CSA EAC UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	2.4 W	70000 Hrs	-20 °C	-20 C		70 °C	35 dB			70 °C	Auto Restart Locked Rotor Protection			0.2 A	90.5 Pa	0.363 in H2O
ebm-papst Inc. 612N/2H	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.708 m³/min	25.3 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	1.8 W	70000 Hrs	-20 °C	-20 C		70 °C	19 dB(A)	66.22 g	0.146 lb	70 °C	Speed Sensor (Tach)
ebm-papst Inc. 612NGME	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	4100 RPM	Sintec	0.577 mł/min	20.6 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.2 W	80000 Hrs	-20 °C	-20 C		75 ░C	27 dB(A)	66.22 g	0.146 lb	75 °C
ebm-papst Inc. 612NHU-181	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.708 m³/min	25.3 CFM	UL	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.8 W		-20 °C	-20 C		70 °C	37 dB	66.22 g	0.146 lb	70 °C							IP68 - Dust Tight Waterproof
ebm-papst Inc. 612N/2GHH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	6350 RPM	Sintec	0.924 mł/min	33 CFM	CE CSA EAC UL VDE	25.4 mm	8 VDC	13.2 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	3.1 W	60000 Hrs	-20 °C	-20 C		70 °C	16 dB	86.18 g	0.19 lb	70 °C	Auto Restart Locked Rotor Protection Speed Sensor (Tach)			0.255 A	113 Pa	0.454 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.89
		10	$ 62.33
		36	$ 58.23
		72	$ 57.41
		108	$ 52.90

Description

General part information

612N Series

DC Fans Tubeaxial, 60x25mm, 24VDC, 20.6CFM, 1.4W, 28dB, 4100RPM, Ball, Open Speed Signal
