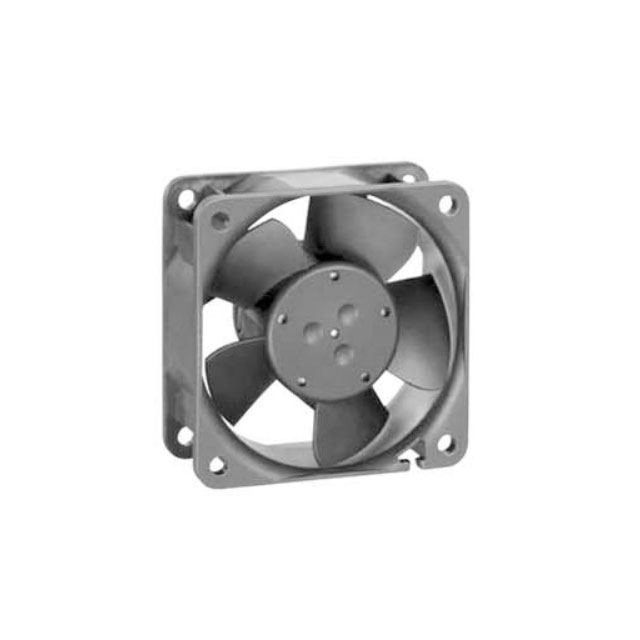

612NGH

Active

ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, SLEEVE BEARING, 27.1 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +1

612NGH

Active

ebm-papst Inc.

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 25 MM, SLEEVE BEARING, 27.1 CFM

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	612NGH

Air Flow	0.708 m³/min
Air Flow	25.3 CFM
Approval Agency	UL, VDE, EAC, CE, CSA
Bearing Type	Sintec
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	2.4 W
RPM	5600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	90.5 Pa
Static Pressure	0.363 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	8 VDC
Width [y]	25.4 mm

612N Series

DC Fans Tubeaxial, 60x25mm, 24VDC, 20.6CFM, 1.4W, 28dB, 4100RPM, Ball, Open Speed Signal

Part	Material - Blade	Voltage - Rated	RPM	Bearing Type	Air Flow	Air Flow	Approval Agency	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Termination	Fan Type	Power (Watts)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Weight	Weight	Operating Temperature [Max]	Features	Operating Temperature	Operating Temperature	Current Rating (Amps)	Static Pressure	Static Pressure	Ingress Protection
ebm-papst Inc. 612NGMI	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	4100 RPM	Sintec	0.577 mł/min	20.6 CFM	CE CSA UL VDE	25.4 mm	8 VDC	12.6 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.7 W	80000 Hrs	-20 °C	-20 C	65 °C	65 °C	31 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612NGLE	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	2500 RPM	Sintec	0.314 m³/min	11.2 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	0.58 W	80000 Hrs					27 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612NH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.759 m³/min	27.1 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	2 W	70000 Hrs	-20 °C	-20 C		70 °C	37 dB	84.82 g	0.187 lb	70 °C
ebm-papst Inc. 612NMLE	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	3000 RPM	Ball	0.412 mł/min	14.7 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	0.4 W	80000 Hrs					19 dB(A)	66.22 g	0.146 lb
ebm-papst Inc. 612N/2ML	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC		Ball				25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	0.8 W						35 dB	86.18 g	0.19 lb		Speed Sensor (Tach)	70 °C	70 °C
ebm-papst Inc. 612NGH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Sintec	0.708 m³/min	25.3 CFM	CE CSA EAC UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	2.4 W	70000 Hrs	-20 °C	-20 C		70 °C	35 dB			70 °C	Auto Restart Locked Rotor Protection			0.2 A	90.5 Pa	0.363 in H2O
ebm-papst Inc. 612N/2H	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.708 m³/min	25.3 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	1.8 W	70000 Hrs	-20 °C	-20 C		70 °C	19 dB(A)	66.22 g	0.146 lb	70 °C	Speed Sensor (Tach)
ebm-papst Inc. 612NGME	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	4100 RPM	Sintec	0.577 mł/min	20.6 CFM	CE CSA UL VDE	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.2 W	80000 Hrs	-20 °C	-20 C		75 ░C	27 dB(A)	66.22 g	0.146 lb	75 °C
ebm-papst Inc. 612NHU-181	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	5600 RPM	Ball	0.708 m³/min	25.3 CFM	UL	25.4 mm	8 VDC	15 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	2 Wire Leads	Tubeaxial	1.8 W		-20 °C	-20 C		70 °C	37 dB	66.22 g	0.146 lb	70 °C							IP68 - Dust Tight Waterproof
ebm-papst Inc. 612N/2GHH	Fiberglass Reinforced Nylon Polyamide (PA)	12 VDC	6350 RPM	Sintec	0.924 mł/min	33 CFM	CE CSA EAC UL VDE	25.4 mm	8 VDC	13.2 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	3 Wire Leads	Tubeaxial	3.1 W	60000 Hrs	-20 °C	-20 C		70 °C	16 dB	86.18 g	0.19 lb	70 °C	Auto Restart Locked Rotor Protection Speed Sensor (Tach)			0.255 A	113 Pa	0.454 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.79
		10	$ 27.21
		25	$ 26.18
		50	$ 24.45
		100	$ 22.56
		250	$ 22.21
Newark	Each	25	$ 28.74
		50	$ 27.33
		100	$ 25.92

Description

General part information

612N Series

DC Fans Tubeaxial, 60x25mm, 24VDC, 20.6CFM, 1.4W, 28dB, 4100RPM, Ball, Open Speed Signal

Documents

Technical documentation and resources

Datasheet

Manufacturer Catalogue EN

Datasheet

Technical Data Sheet EN

Datasheet
