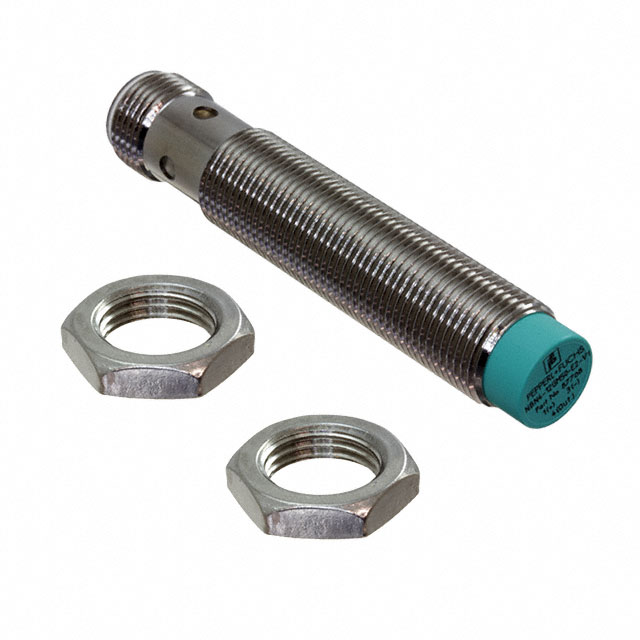

NBN4-12GM50-E2-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NON-FLUSH PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM NON-FLUSH PNP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Sensor Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body	Ingress Protection	Output Type	Indicator [custom]	Shielding	Termination Style
PEPPERL+FUCHS NBN4-12GM50-E2	70 °C	-25 °C	4 mm	0.157 in	Inductive	Cylinder Threaded - M12	30 VDC	10 VDC	Nickel-Plated Brass	IP67	PNP-NO 3-Wire	LED	Unshielded	Cable
PEPPERL+FUCHS NBN4-12GM40-Z0-V1	70 °C	-25 °C	4 mm	0.157 in	Inductive	Cylinder Threaded - M12	60 V	5 V	Nickel-Plated Brass	IP67	SCR-NO 2-Wire	LED	Unshielded	Connector
PEPPERL+FUCHS NBN4-12GM50-E2-V1	70 °C	-25 °C	4 mm	0.157 in	Inductive	Cylinder Threaded - M12	30 VDC	10 VDC	Nickel-Plated Brass	IP67	PNP-NO 3-Wire	LED	Unshielded	Connector
PEPPERL+FUCHS NBN4-12GM60-A2-V1	70 °C	-25 °C	4 mm	0.157 in	Inductive	Cylinder Threaded - M12	30 VDC	10 VDC	Nickel-Plated Brass	IP67	4-Wire PNP-NC/NO	LED	Unshielded	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 4MM NON-FLUSH PNP

Technical documentation and resources
