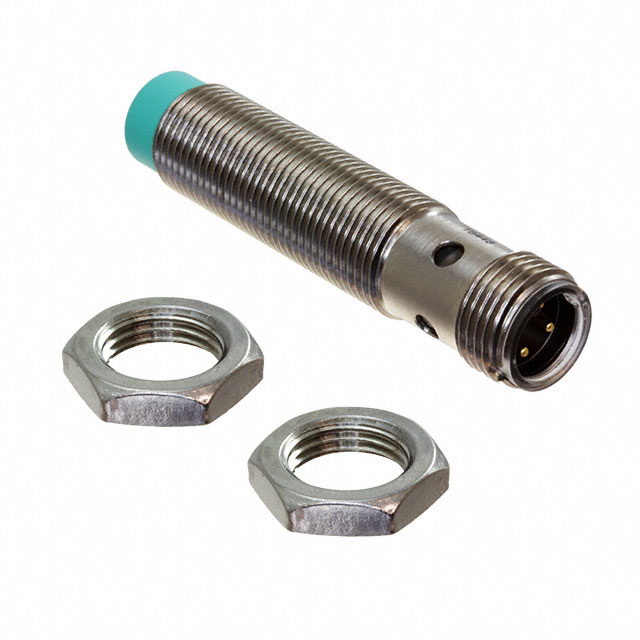

NBN4-12GM40-Z0-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN 4MM NO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NBN4-12GM40-Z0-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN 4MM NO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NBN4-12GM40-Z0-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 4 mm |
| Sensing Distance | 0.157 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 60 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 107.40 | |
| 5 | $ 90.59 | |||
| 10 | $ 84.20 | |||
| 25 | $ 76.43 | |||
| 50 | $ 71.04 | |||
| 100 | $ 66.41 | |||
Description
General part information
NBN4-12 Series
INDUCTIVE SEN 4MM NO
Documents
Technical documentation and resources
