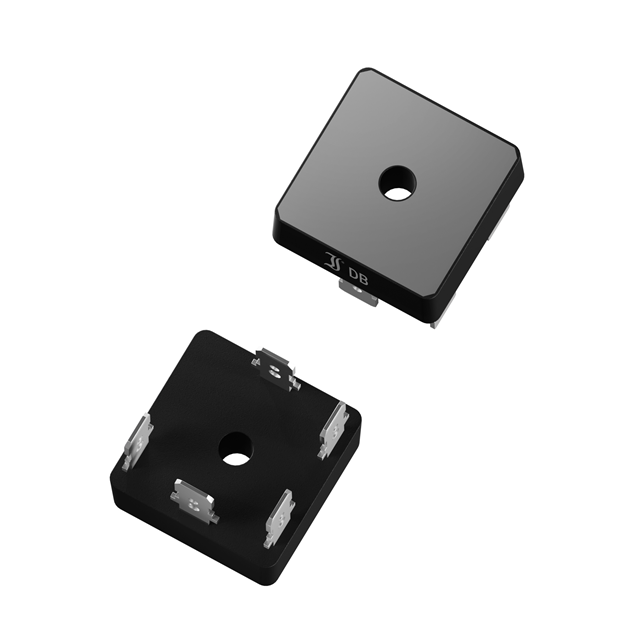

DB35-02

Active

Diotec Semiconductor

BRIDGE RECT 3P 200V 35A DB-35

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 3P 200V 35A DB-35

Technical Specifications

Parameters and characteristics for this part

Specification	DB35-02

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	DB-35, 5-Square
Supplier Device Package	DB-35, DB
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Package / Case	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]
Diotec Semiconductor DB35-10	5-Square DB-35	Three Phase	DB DB-35	1000 V	Chassis Mount	Standard	1.05 V	10 çA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-12	5-Square DB-35	Three Phase	DB	1.2 kV	Chassis Mount	Standard	1.05 V	10 µA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-02	5-Square DB-35	Three Phase	DB DB-35	200 V	Chassis Mount	Standard	1.05 V	5 µA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-01	5-Square DB-35	Three Phase	DB	100 V	Chassis Mount	Standard	1.05 V	5 µA	35 A	150 °C	-50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 200 V Chassis Mount DB-35
