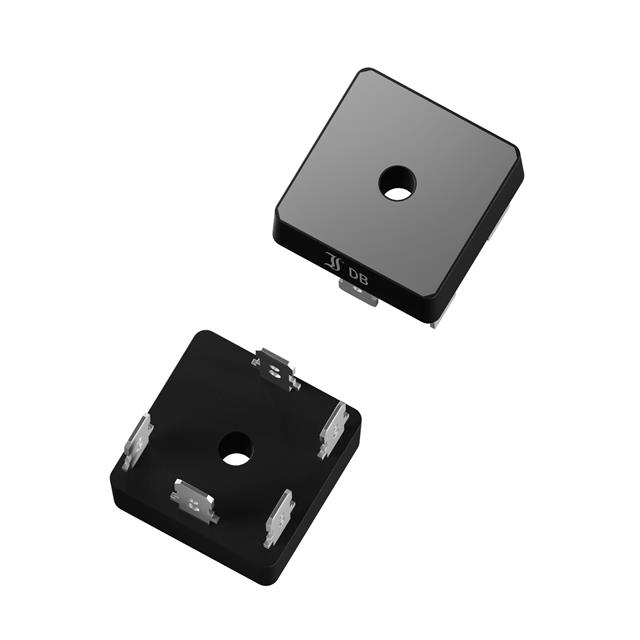

DB35-10

Active

Diotec Semiconductor

3P RECT, 1000V, 35A, 450A, 1.05V

Search across all available documentation for this part.

Active

Diotec Semiconductor

3P RECT, 1000V, 35A, 450A, 1.05V

Technical Specifications

Parameters and characteristics for this part

Specification	DB35-10

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	DB-35, 5-Square
Supplier Device Package	DB-35, DB
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]
Diotec Semiconductor DB35-10	5-Square DB-35	Three Phase	DB DB-35	1000 V	Chassis Mount	Standard	1.05 V	10 çA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-12	5-Square DB-35	Three Phase	DB	1.2 kV	Chassis Mount	Standard	1.05 V	10 µA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-02	5-Square DB-35	Three Phase	DB DB-35	200 V	Chassis Mount	Standard	1.05 V	5 µA	35 A	150 °C	-50 °C
Diotec Semiconductor DB35-01	5-Square DB-35	Three Phase	DB	100 V	Chassis Mount	Standard	1.05 V	5 µA	35 A	150 °C	-50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1 kV Chassis Mount DB-35
