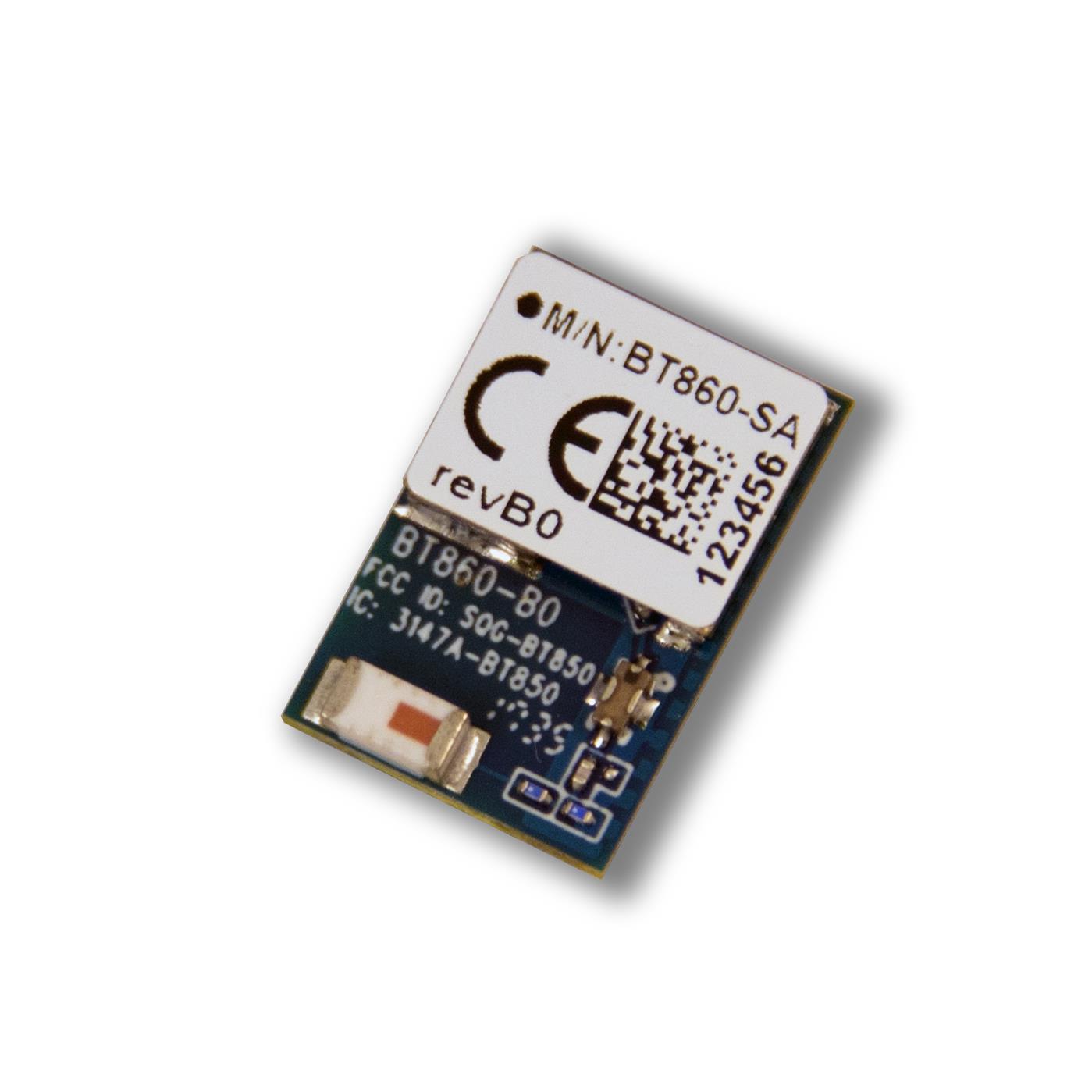

BT860-SA
ActiveEzurio LLC
BLUETOOTH V4.2 (BLE) + EDR SMART SOC CLASS I IOT 3MBPS 3.3V 30-PIN SMD MODULE CUT TAPE
Deep-Dive with AI
Search across all available documentation for this part.
BT860-SA
ActiveEzurio LLC
BLUETOOTH V4.2 (BLE) + EDR SMART SOC CLASS I IOT 3MBPS 3.3V 30-PIN SMD MODULE CUT TAPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT860-SA |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Transmitting | 55 mA |
| Data Rate | 3 Mbps |
| Frequency [Max] | 2.48 GHz |
| Frequency [Min] | 2.402 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 28-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94 dBm |
| Serial Interfaces | UART, PCM, I2S |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BT860 Series
Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount
