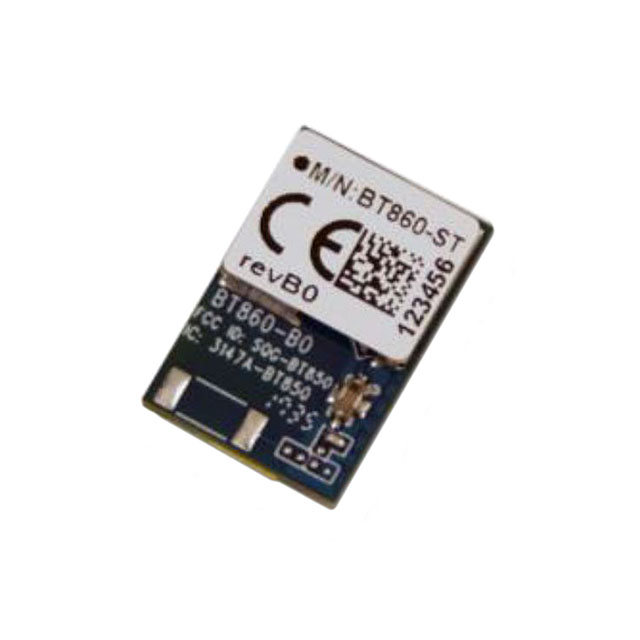

BT860-ST-T/R

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BT CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BT860-ST-T/R

Antenna Type	Antenna Not Included, Castellation
Current - Transmitting	55 mA
Data Rate	3 Mbps
Frequency [Max]	2.48 GHz
Frequency [Min]	2.402 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Package / Case	28-SMD Module
Power - Output	8 dBm
Protocol	Bluetooth v5.0
RF Family/Standard	Bluetooth
Sensitivity	-94 dBm
Serial Interfaces	USB, PCM, I2S
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Package / Case	Power - Output	Frequency [Max]	Frequency [Min]	Antenna Type	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Serial Interfaces	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	RF Family/Standard	Sensitivity
Ezurio LLC BT860-ST-T/R	28-SMD Module	8 dBm	2.48 GHz	2.402 GHz	Antenna Not Included Castellation	55 mA	3.6 V	3 V	Bluetooth v5.0	I2S PCM USB	Surface Mount	-30 ░C	85 °C	3 Mbps	Bluetooth	-94 dBm
Ezurio LLC BT860-SA	28-SMD Module	8 dBm	2.48 GHz	2.402 GHz	Integrated Chip	55 mA	3.6 V	3 V	Bluetooth v5.0	I2S PCM UART	Surface Mount	-30 ░C	85 °C	3 Mbps	Bluetooth	-94 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 9.69

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Antenna Not Included, Castellation Surface Mount

Technical documentation and resources

No documents available
