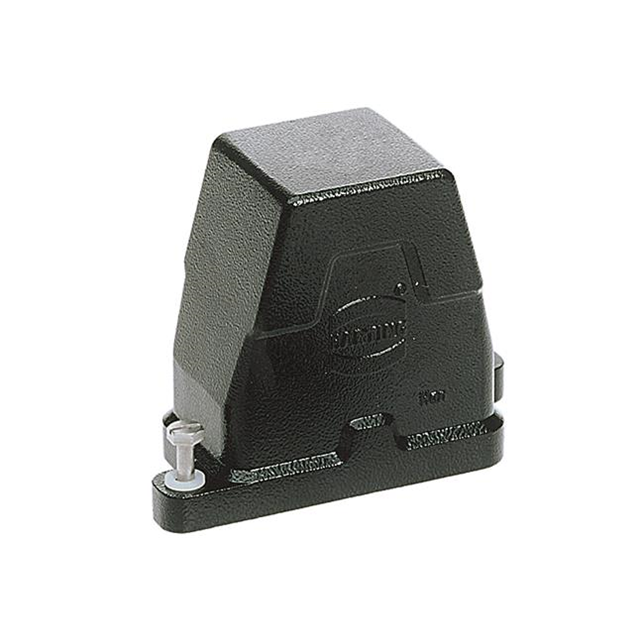

HAN 6 HPR HOOD - SCREW LOCKING W/O PG ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09400060811

Active

HARTING Technology Group

HAN 6 HPR HOOD - SCREW LOCKING W/O PG ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09400060811

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	5.197 in
Size / Dimension [x]	132 mm
Size / Dimension [y]	2.283 "
Size / Dimension [y]	58 mm
Size / Dimension [z]	100.5 mm
Size / Dimension [z]	3.957 in
Style	Bottom Entry

09400060 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Housing Color	Housing Material	Thread Size	Connector Type	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 09400060513	Powder Coated	125 °C	-40 °C	6B	Side Entry	Black	Aluminum Die Cast	PG29	Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060811	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060314	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Base - Panel Mount	Screw Locks on Hood		2.283 "	1.138 "	5.197 in	132 mm		58 mm	28.9 mm	Corrosion Resistant
HARTING Technology Group 09400060411	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG16	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm
HARTING Technology Group 09400060512	Powder Coated	125 °C	-40 °C	6B	Side Entry	Black	Aluminum Die Cast	PG21	Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060413	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG29	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm
HARTING Technology Group 09400060317	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Base - Panel Mount	Screw Locks on Hood		2.283 "	1.138 "	5.197 in	132 mm		58 mm	28.9 mm	Cover
HARTING Technology Group 09400060401	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG16	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.75
Newark	Each	1	$ 123.11
		10	$ 116.19
		25	$ 112.73
		50	$ 104.44
		100	$ 98.90

Description

General part information

09400060 Series

Hood Connector Bottom Entry 6B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
