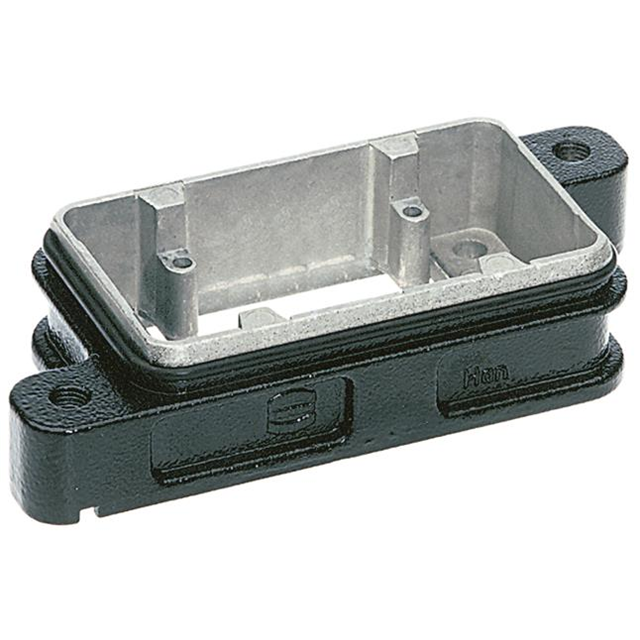

HAN 6HPR BASEPANEL SCREWLOCK.FOR HC MODU ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09400060314

Active

HARTING Technology Group

HAN 6HPR BASEPANEL SCREWLOCK.FOR HC MODU ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09400060314

Connector Type	Base - Panel Mount
Features	Corrosion Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.197 in
Size / Dimension [y]	2.283 "
Size / Dimension [y]	58 mm
Size / Dimension [z]	1.138 "
Size / Dimension [z]	28.9 mm
Style	Bottom Entry

09400060 Series

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Housing Color	Housing Material	Thread Size	Connector Type	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Features
HARTING Technology Group 09400060513	Powder Coated	125 °C	-40 °C	6B	Side Entry	Black	Aluminum Die Cast	PG29	Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060811	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060314	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Base - Panel Mount	Screw Locks on Hood		2.283 "	1.138 "	5.197 in	132 mm		58 mm	28.9 mm	Corrosion Resistant
HARTING Technology Group 09400060411	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG16	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm
HARTING Technology Group 09400060512	Powder Coated	125 °C	-40 °C	6B	Side Entry	Black	Aluminum Die Cast	PG21	Hood	Screw Locks on Hood	100.5 mm	2.283 "	3.957 in	5.197 in	132 mm	58 mm
HARTING Technology Group 09400060413	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG29	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm
HARTING Technology Group 09400060317	Powder Coated	125 °C	-40 °C	6B	Bottom Entry	Black	Aluminum Die Cast		Base - Panel Mount	Screw Locks on Hood		2.283 "	1.138 "	5.197 in	132 mm		58 mm	28.9 mm	Cover
HARTING Technology Group 09400060401	Powder Coated	125 °C	-40 °C	6B	Top Entry	Black	Aluminum Die Cast	PG16	Hood	Screw Locks on Hood		2.283 "	3.937 "	5.197 in	132 mm		58 mm	100 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.15
		10	$ 58.86
		25	$ 56.60
		50	$ 54.71
		100	$ 51.70
Newark	Each	1	$ 77.20
		10	$ 72.87
		25	$ 70.70
		50	$ 65.49
		100	$ 62.02

Description

General part information

09400060 Series

Base - Panel Mount Connector Bottom Entry 6B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
