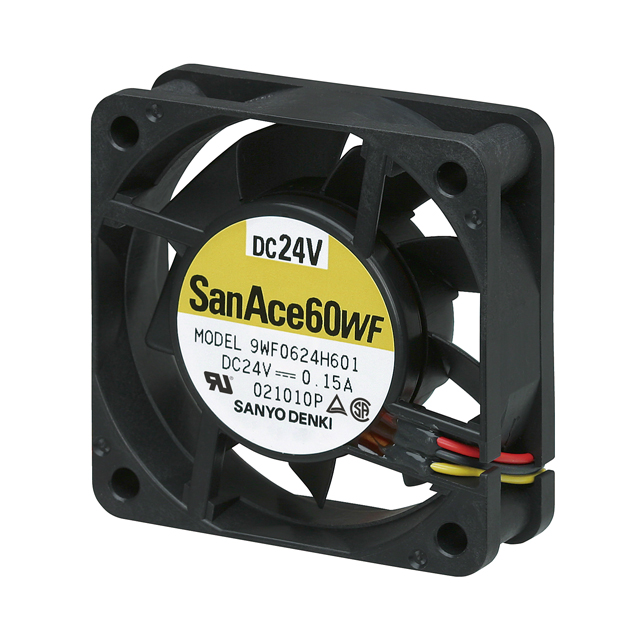

9WF0624H601

Active

Sanyo Denki America Inc.

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System Oil Proof Fan Rotor Balancing +1

9WF0624H601

Active

Sanyo Denki America Inc.

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System Oil Proof Fan Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WF0624H601

Air Flow	24.3 CFM
Air Flow	0.68 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Ingress Protection	Oil Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.6 W
RPM	6600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	112.1 Pa
Static Pressure	0.45 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Weight	0.177 lb
Weight	80.29 g
Width [y]	20 mm

9WF0624 Series

Part	Bearing Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Material - Frame	Fan Type	RPM	Features	Power (Watts)	Static Pressure	Static Pressure	Ingress Protection	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Air Flow	Air Flow	Termination	Material - Blade	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Weight	Weight	Voltage - Rated	Width [x]
Sanyo Denki America Inc. 9WF0624H601	Ball	42 dB	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	Plastic	Tubeaxial	6600 RPM	Speed Sensor (Tach)	3.6 W	112.1 Pa	0.45 in H2O	Oil Resistant	150 mA	27.6 VDC	12 VDC	20 mm	24.3 CFM	0.68 m³/min	3 Wire Leads	Plastic	60 mm	60 mm	CSA TUV UL	0.177 lb	80.29 g	24 VDC
Sanyo Denki America Inc. 9WF0624H6D01	Ball	42 dB	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	Plastic	Tubeaxial	6600 RPM	Locked Rotor Sensor	3.6 W	112.1 Pa	0.45 in H2O	Oil Resistant	150 mA	27.6 VDC	12 VDC	20 mm	24.3 CFM	0.68 m³/min	3 Wire Leads	Plastic	60 mm	60 mm	CSA TUV UL	0.177 lb	80.29 g	24 VDC
Sanyo Denki America Inc. 9WF0624H4D01	Ball	41 dB	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	Plastic	Tubeaxial	6500 RPM	Locked Rotor Sensor	3.6 W	94.6 Pa	0.38 in H2O	Oil Resistant	150 mA			25 mm	23.6 CFM	0.661 m³/min	3 Wire Leads	Plastic	60 mm	60 mm	CSA TUV UL	0.243 lb	110.22 g	24 VDC
Sanyo Denki America Inc. 9WF0624H401	Ball	41 dB	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	Plastic	Tubeaxial	6500 RPM	Speed Sensor (Tach)	3.6 W	94.6 Pa	0.38 in H2O	Oil Resistant	150 mA			25 mm	23.6 CFM	0.661 m³/min	3 Wire Leads	Plastic	60 mm	60 mm	CSA TUV UL	0.243 lb	110.22 g	24 VDC
Sanyo Denki America Inc. 9WF0624H7D01	Ball	44 dB	-20 °C	70 °C	-20 C	70 °C	40000 Hrs	Plastic	Tubeaxial	6800 RPM	Locked Rotor Sensor	2.88 W	94.6 Pa	0.38 in H2O	Oil Resistant	120 mA						3 Wire Leads	Plastic	60 mm	60 mm	CSA TUV UL	0.137 lb	62.14 g	24 VDC	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.00
		10	$ 23.18
		25	$ 22.14
		50	$ 21.39
		100	$ 20.66
		250	$ 19.74
		500	$ 19.15

Description

General part information

9WF0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 24.3 CFM (0.680m³/min) 3 Wire Leads
