WM8325GEFL/V
ObsoleteCirrus Logic Inc.
IC REG 15OUT BUCK/LNR SYNC 81QFN
Deep-Dive with AI
Search across all available documentation for this part.
WM8325GEFL/V
ObsoleteCirrus Logic Inc.
IC REG 15OUT BUCK/LNR SYNC 81QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8325GEFL/V |
|---|---|
| Frequency - Switching [Max] | 4 MHz |
| Frequency - Switching [Min] | 2 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 15 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

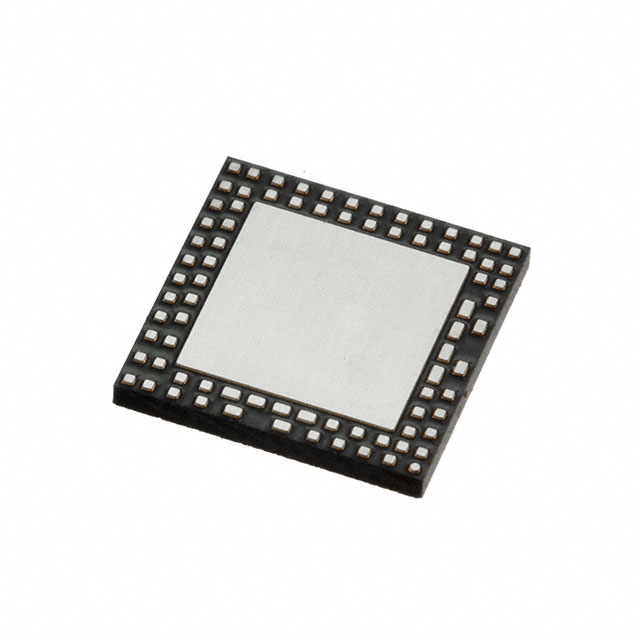

| Package / Case | 81-VQFN Dual Rows, Exposed Pad |
| Supplier Device Package | 81-QFN (8x8) |
| Topology | Step-Down (Buck) Synchronous (4), Linear (LDO) (11) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
| Voltage/Current - Output 2 | 1.25 A |
| Voltage/Current - Output 2 [Max] | 1.8 V |
| Voltage/Current - Output 2 [Min] | 0.6 V |
| Voltage/Current - Output 3 | 1 A |
| Voltage/Current - Output 3 [Max] | 3.4 V |
| Voltage/Current - Output 3 [Min] | 0.85 V |
| w/LED Driver | True |
| w/Sequencer | True |
| w/Supervisor | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.35 | |
| 10 | $ 8.45 | |||
| 25 | $ 8.05 | |||
| 80 | $ 6.99 | |||
| 260 | $ 6.68 | |||
| 520 | $ 6.09 | |||
Description
General part information
WM8325 Series
PMIC - Voltage Regulators - Linear Switching 15 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (11) 2MHz ~ 4MHz 81-QFN (8x8)
Documents
Technical documentation and resources
No documents available
