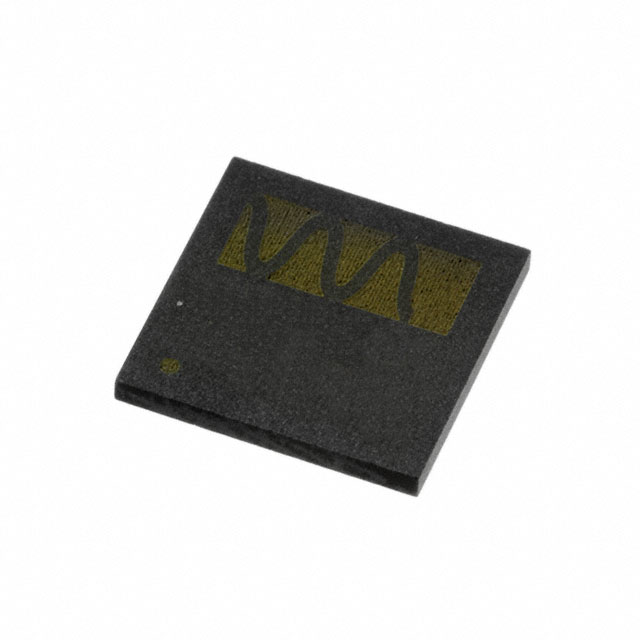

WM8325GEFL/RV

Obsolete

Cirrus Logic Inc.

IC REG 15OUT BUCK/LNR SYNC 81QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC REG 15OUT BUCK/LNR SYNC 81QFN

Technical Specifications

Parameters and characteristics for this part

Specification	WM8325GEFL/RV

Frequency - Switching [Max]	4 MHz
Frequency - Switching [Min]	2 MHz
Mounting Type	Surface Mount
Number of Outputs	15
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	81-VQFN Dual Rows, Exposed Pad
Supplier Device Package	81-QFN (8x8)
Topology	Step-Down (Buck) Synchronous (4), Linear (LDO) (11)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V
Voltage/Current - Output 2	1.25 A
Voltage/Current - Output 2 [Max]	1.8 V
Voltage/Current - Output 2 [Min]	0.6 V
Voltage/Current - Output 3	1 A
Voltage/Current - Output 3 [Max]	3.4 V
Voltage/Current - Output 3 [Min]	0.85 V
w/LED Driver	True
w/Sequencer	True
w/Supervisor	False

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	w/Sequencer	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Supplier Device Package	w/LED Driver	Voltage/Current - Output 3 [Min]	Voltage/Current - Output 3 [Max]	Voltage/Current - Output 3	Package / Case	w/Supervisor	Operating Temperature [Max]	Operating Temperature [Min]	Voltage/Current - Output 2	Voltage/Current - Output 2 [Max]	Voltage/Current - Output 2 [Min]	Number of Outputs	Topology
Cirrus Logic Inc. WM8325GEFL/RV	2.7 V	5.5 V		Surface Mount	2 MHz	4 MHz	81-QFN (8x8)		0.85 V	3.4 V	1 A	81-VQFN Dual Rows Exposed Pad		85 °C	-40 °C	1.25 A	1.8 V	0.6 V	15	Linear (LDO) (11) Step-Down (Buck) Synchronous (4)
Cirrus Logic Inc. WM8325GEFL/V	2.7 V	5.5 V		Surface Mount	2 MHz	4 MHz	81-QFN (8x8)		0.85 V	3.4 V	1 A	81-VQFN Dual Rows Exposed Pad		85 °C	-40 °C	1.25 A	1.8 V	0.6 V	15	Linear (LDO) (11) Step-Down (Buck) Synchronous (4)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PMIC - Voltage Regulators - Linear Switching 15 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (11) 2MHz ~ 4MHz 81-QFN (8x8)
