19396160547 - 19396160547

19396160547

Active
HARTING Technology Group

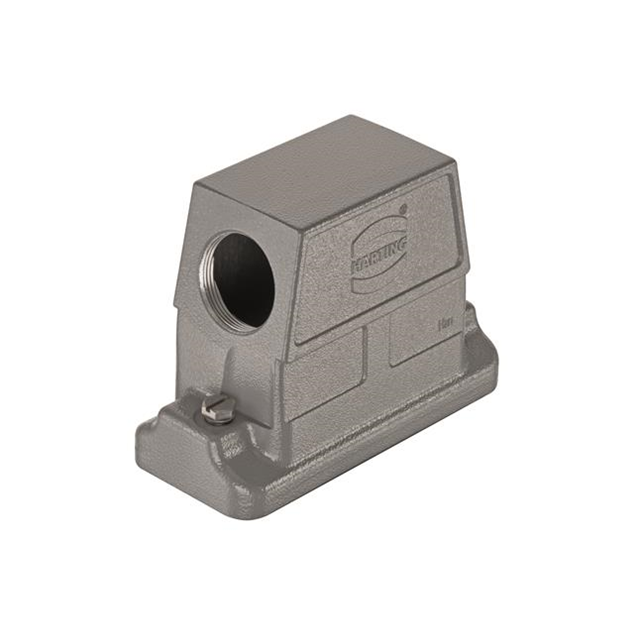

HAN 16 HP DIRECT B HOOD, SIDE ENTRY, M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet19396160547 Prod Declaration Cert+1
19396160547 - 19396160547

19396160547

Active
HARTING Technology Group

HAN 16 HP DIRECT B HOOD, SIDE ENTRY, M32

Deep-Dive with AI

DocumentsDatasheet19396160547 Prod Declaration Cert+1

Technical Specifications

Parameters and characteristics for this part

Specification19396160547
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size16 B
Size / Dimension [x]127 mm
Size / Dimension [x]5 in
Size / Dimension [y]57 mm
Size / Dimension [y]2.244 "
Size / Dimension [z]95 mm
Size / Dimension [z]3.74 in
StyleSide Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 167.93
10$ 142.76
25$ 133.83
50$ 128.34
NewarkEach 1$ 182.76
10$ 172.49
25$ 167.36
50$ 155.04
100$ 146.82

Description

General part information

19396160 Series

Hood Connector Side Entry M32 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
