19396160447

Active

HARTING Technology Group

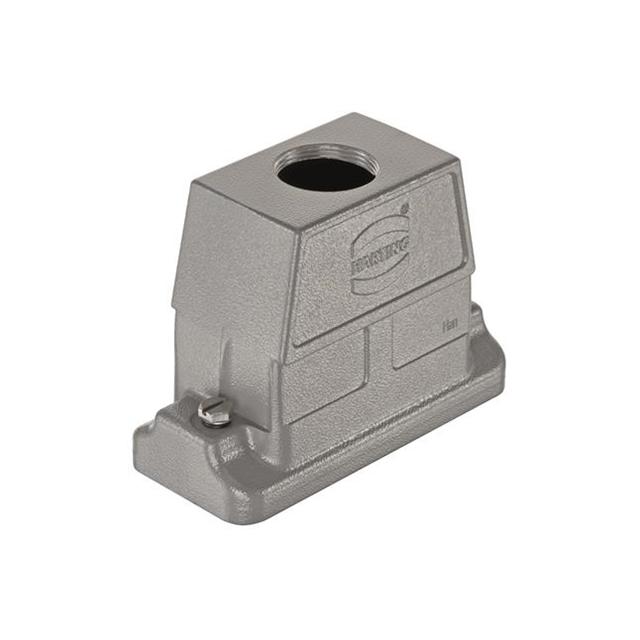

HAN 16 HP DIRECT B HOOD, TOP ENTRY, M32

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 16 HP DIRECT B HOOD, TOP ENTRY, M32

Technical Specifications

Parameters and characteristics for this part

Specification	19396160447

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	94 mm
Size / Dimension [z]	3.701 in
Style	Top Entry
Thread Size	M32

Part	Thread Size	Lock Location	Size	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Style	Connector Type	Housing Color	Ingress Protection	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
HARTING Technology Group 19396160546	M25	Screw Locks on Hood	16 B	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Side Entry	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	95 mm	3.74 in	57 mm	127 mm	5 in	2.244 "
HARTING Technology Group 19396160447	M32	Screw Locks on Hood	16 B	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Top Entry	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	94 mm	3.701 in	57 mm	127 mm	5 in	2.244 "
HARTING Technology Group 19396160547	M32	Screw Locks on Hood	16 B	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Side Entry	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	95 mm	3.74 in	57 mm	127 mm	5 in	2.244 "
HARTING Technology Group 19396160548		Screw Locks on Hood	16 B	Powder Coated	125 °C	-40 °C	Aluminum Die Cast	Side Entry	Hood	Gray	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	95 mm	3.74 in	56.8 mm	127 mm	5 in	2.236 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
