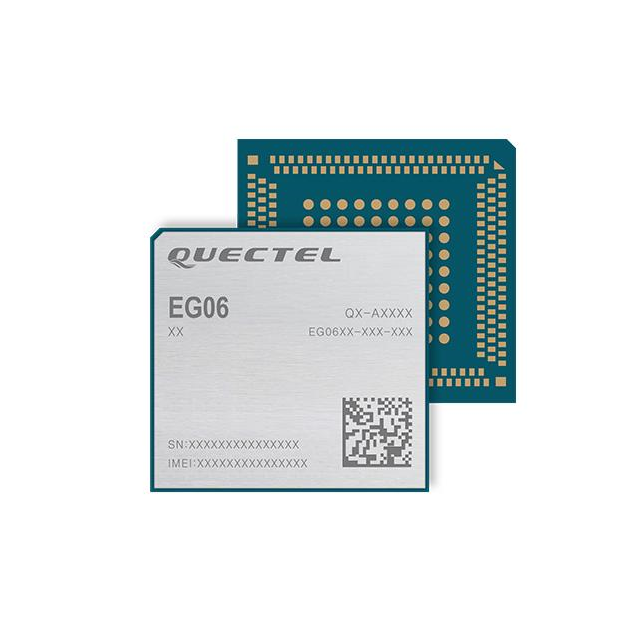

EG06ELA-512-SGA
ObsoleteQuectel
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Search across all available documentation for this part.
EG06ELA-512-SGA
ObsoleteQuectel
RF TXRX MOD CELL NAV SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EG06ELA-512-SGA |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 18 mA |
| Current - Transmitting | 18 mA |
| Data Rate | 300 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Protocol | WCDMA, GNSS, GPS, LTE, GLONASS, Beidou, Galileo |
| RF Family/Standard | Cellular, Navigation |
| Serial Interfaces | PCM, USB, ADC, I2C, GPIO, UART |
| Utilized IC / Part | MDM9240-1 |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 118.39 | |
| 10 | $ 111.62 | |||
| 25 | $ 104.86 | |||
| 100 | $ 98.09 | |||
| Digi-Reel® | 1 | $ 118.39 | ||
| 10 | $ 111.62 | |||
| 25 | $ 104.86 | |||
| 100 | $ 98.09 | |||
| Tape & Reel (TR) | 200 | $ 94.43 | ||
Description
General part information
EG06 Series
Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA Transceiver Module Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
