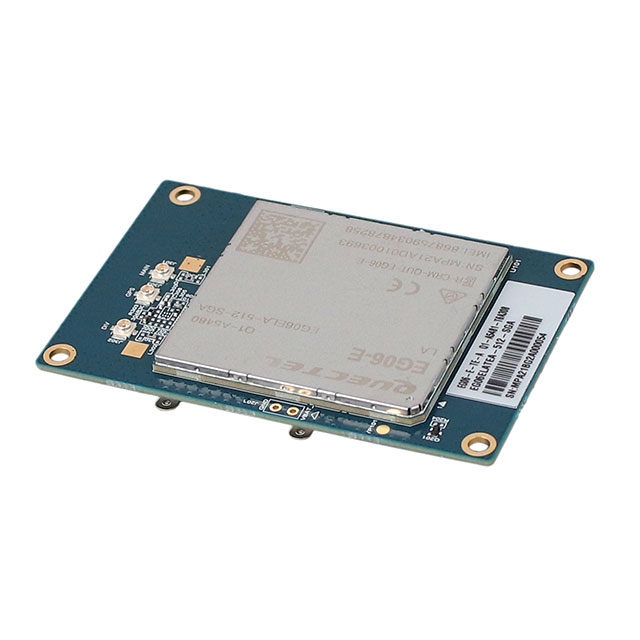

EG06ELATEA-512-SGA

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics for this part

Specification	EG06ELATEA-512-SGA

Antenna Type	Antenna Not Included
Current - Receiving	18 mA
Current - Transmitting	18 mA
Data Rate	300 Mbps
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Protocol	WCDMA, GNSS, GPS, LTE, GLONASS, Beidou, Galileo
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCM, USB, ADC, I2C, GPIO, UART
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

Part	Serial Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Current - Transmitting	Utilized IC / Part	Antenna Type	Data Rate	RF Family/Standard	Mounting Type	Current - Receiving
Quectel EG06AUTLLA-512-SGAS	ADC GPIO I2C PCM UART USB	-35 °C	75 ░C	Module	4.3 V	3.3 V	Beidou Galileo GLONASS GNSS GPS LTE	20 mA	MDM9240-1	Antenna Not Included	300 Mbps	Cellular Navigation	Surface Mount
Quectel EG06ELA-512-SGA	ADC GPIO I2C PCM UART USB	-35 °C	75 ░C	Module	4.3 V	3.3 V	Beidou Galileo GLONASS GNSS GPS LTE WCDMA	18 mA	MDM9240-1	Antenna Not Included	300 Mbps	Cellular Navigation	Surface Mount	18 mA
Quectel EG06ALA-512-SGAS	ADC GPIO I2C PCM UART USB	-35 °C	75 ░C	Module	4.3 V	3.3 V	Beidou Galileo GLONASS GNSS GPS LTE WCDMA	20 mA	MDM9240-1	Antenna Not Included	300 Mbps	Cellular Navigation	Surface Mount
Quectel EG06ELATEA-512-SGA	ADC GPIO I2C PCM UART USB	-35 °C	75 ░C	Module	4.3 V	3.3 V	Beidou Galileo GLONASS GNSS GPS LTE WCDMA	18 mA		Antenna Not Included	300 Mbps	Cellular Navigation	Surface Mount	18 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 93.75

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, WCDMA Transceiver Module Antenna Not Included Surface Mount
