0008500113-10-R6-D

Active

Molex

10" PRE-CRIMP A3049 RED

Search across all available documentation for this part.

Active

Molex

10" PRE-CRIMP A3049 RED

Technical Specifications

Parameters and characteristics for this part

...

Part	Length	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Contact End	Number of Rows	Wire Gauge	Contact Finish	Number of Conductors	Color	Length [x]	Length
Molex 0008500113-10-R6-D	254 mm	10 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Red
Molex 0008500113-11-S8-D		11 in	2.54 µm	100 µin	Socket to Socket	1	28 AWG	Tin	1	Slate	279.4 mm
Molex 0008500113-12-L6-D	304.8 mm	12 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Blue
Molex 0008500113-12-W4	304.8 mm	12 in	2.54 µm	100 µin	Socket to Cable (Round)	1	24 AWG	Tin	1	White
Molex 0008500113-05-W8		5 in	2.54 µm	100 µin	Socket to Cable (Round)	1	28 AWG	Tin	1	White	127 mm
Molex 0008500113-10-Y6-D	254 mm	10 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Yellow
Molex 0008500113-03-A2-D	76.2 mm	3 in	2.54 µm	100 µin	Socket to Socket	1	22 AWG	Tin	1
Molex 0008500113-05-B1-D		5 in	2.54 µm	100 µin	Socket to Socket	1	30 AWG	Tin	1	Black	127 mm
Molex 0008500113-08-G2	203.2 mm		2.54 µm	100 µin	Socket to Cable (Round)	1	22 AWG	Tin	1	Green		8 in
Molex 0008500113-06-N1	152.4 mm		2.54 µm	100 µin	Socket to Cable (Round)	1	30 AWG	Tin	1	Brown		6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

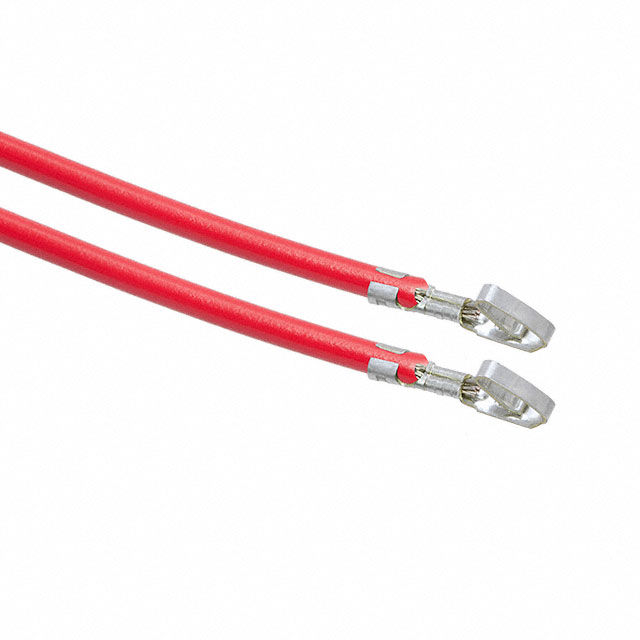

Red 26 AWG Jumper Lead Socket to Socket Tin 10.0" (254.0mm)

Technical documentation and resources

No documents available
