0008500113-06-N1

Unknown

Molex

6" PRE-CRIMP A3047 BROWN

Search across all available documentation for this part.

Unknown

Molex

6" PRE-CRIMP A3047 BROWN

Technical Specifications

Parameters and characteristics for this part

...

Part	Length	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Contact End	Number of Rows	Wire Gauge	Contact Finish	Number of Conductors	Color	Length [x]	Length
Molex 0008500113-10-R6-D	254 mm	10 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Red
Molex 0008500113-11-S8-D		11 in	2.54 µm	100 µin	Socket to Socket	1	28 AWG	Tin	1	Slate	279.4 mm
Molex 0008500113-12-L6-D	304.8 mm	12 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Blue
Molex 0008500113-12-W4	304.8 mm	12 in	2.54 µm	100 µin	Socket to Cable (Round)	1	24 AWG	Tin	1	White
Molex 0008500113-05-W8		5 in	2.54 µm	100 µin	Socket to Cable (Round)	1	28 AWG	Tin	1	White	127 mm
Molex 0008500113-10-Y6-D	254 mm	10 in	2.54 µm	100 µin	Socket to Socket	1	26 AWG	Tin	1	Yellow
Molex 0008500113-03-A2-D	76.2 mm	3 in	2.54 µm	100 µin	Socket to Socket	1	22 AWG	Tin	1
Molex 0008500113-05-B1-D		5 in	2.54 µm	100 µin	Socket to Socket	1	30 AWG	Tin	1	Black	127 mm
Molex 0008500113-08-G2	203.2 mm		2.54 µm	100 µin	Socket to Cable (Round)	1	22 AWG	Tin	1	Green		8 in
Molex 0008500113-06-N1	152.4 mm		2.54 µm	100 µin	Socket to Cable (Round)	1	30 AWG	Tin	1	Brown		6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

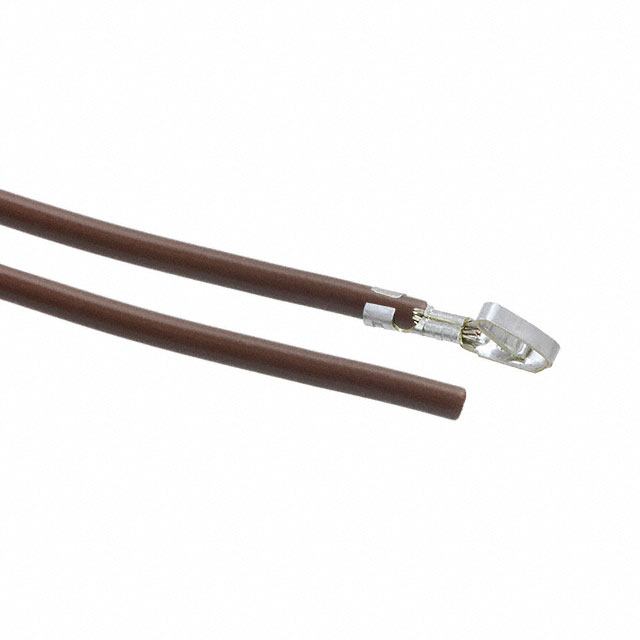

Brown 30 AWG Jumper Lead Socket to Cable (Round) Tin 6.00" (152.40mm)

Technical documentation and resources

No documents available
