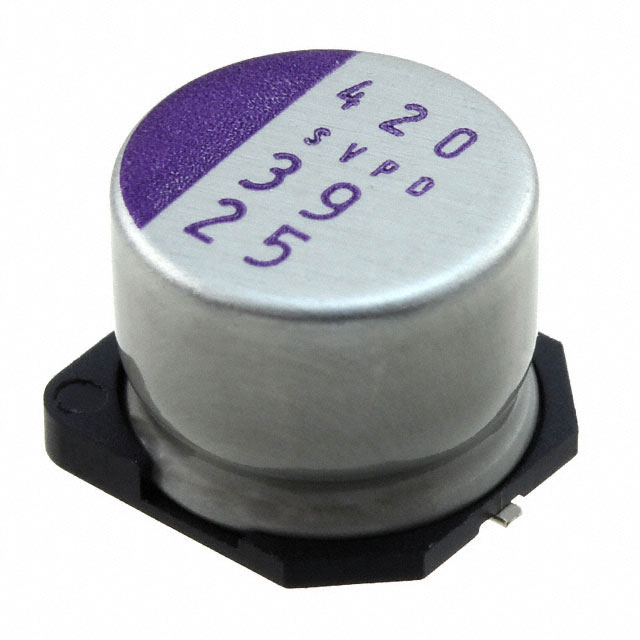

25SVPD39M - 25SVPD39M

25SVPD39M

Active
Panasonic Industrial Automation Sales

CAP, 39ΜF, 25V, 20% ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
25SVPD39M - 25SVPD39M

25SVPD39M

Active
Panasonic Industrial Automation Sales

CAP, 39ΜF, 25V, 20% ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

Specification25SVPD39M
ApplicationsGeneral Purpose
Capacitance39 µF
ESR (Equivalent Series Resistance)45 mOhm
Height - Seated (Max) [Max] [z]8 mm
Height - Seated (Max) [Max] [z]0.315 in
Lifetime @ Temp.2000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency664 mA
Ripple Current @ Low Frequency33.2 mA
Size / Dimension [diameter]10 mm
Size / Dimension [diameter]0.394 in
Surface Mount Land Size [x]0.406 in
Surface Mount Land Size [x]10.3 mm
Surface Mount Land Size [y]10.3 mm
Surface Mount Land Size [y]0.406 "
Tolerance20 %
TypePolymer
Voltage - Rated25 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.79
10$ 1.34
50$ 1.22
100$ 1.00
Digi-Reel® 1$ 1.79
10$ 1.34
50$ 1.22
100$ 1.00
Tape & Reel (TR) 500$ 0.80
1000$ 0.71
2500$ 0.66
5000$ 0.63
12500$ 0.60
NewarkEach (Supplied on Cut Tape) 1$ 1.73
10$ 1.15
25$ 1.09
50$ 1.03
100$ 1.00
250$ 0.86
500$ 0.58

Description

General part information

25SVPD Series

CAP, 39ΜF, 25V, 20% ROHS COMPLIANT: YES
