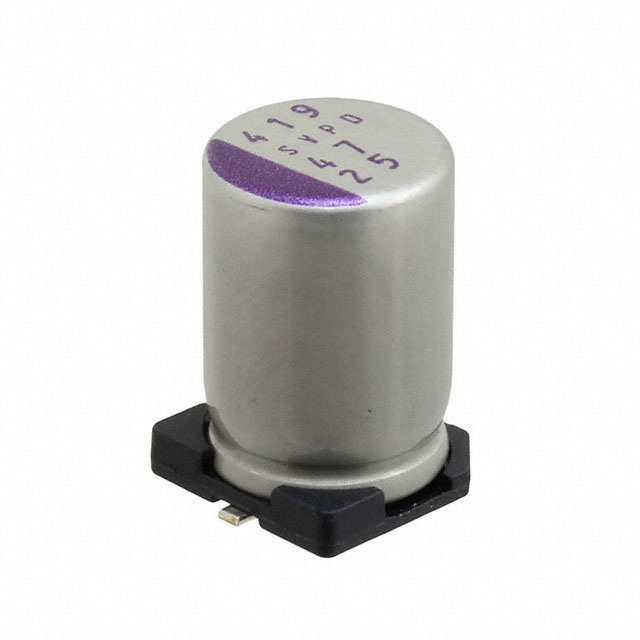

25SVPD47M
ActivePanasonic Industrial Automation Sales
CAP ALUM POLY 47UF 20% 25V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25SVPD47M
ActivePanasonic Industrial Automation Sales
CAP ALUM POLY 47UF 20% 25V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25SVPD47M |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 30 mOhms |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 943 mA |
| Ripple Current @ Low Frequency | 47.15 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Surface Mount Land Size [x] | 0.327 " |
| Surface Mount Land Size [x] | 8.3 mm |
| Surface Mount Land Size [y] | 8.3 mm |
| Surface Mount Land Size [y] | 0.327 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.82 | |
| 10 | $ 1.26 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 1.82 | ||
| 10 | $ 1.26 | |||
| 50 | $ 1.10 | |||
| 100 | $ 0.94 | |||
| Tape & Reel (TR) | 400 | $ 0.81 | ||
| 800 | $ 0.72 | |||
| 1200 | $ 0.69 | |||
| 2000 | $ 0.63 | |||
| 2800 | $ 0.63 | |||
Description
General part information
25SVPD Series
47 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 125°C
