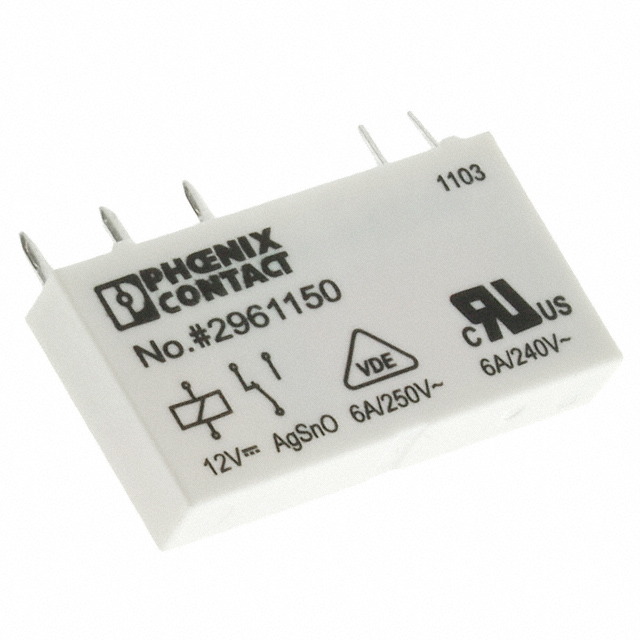

2961150

Active

Phoenix Contact

POWER RELAY, SPDT, 3A, 250A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Phoenix Contact

POWER RELAY, SPDT, 3A, 250A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Current	Switching Voltage	Coil Voltage	Relay Type	Load - Max Switching	Coil Resistance	Operate Time	Release Time	Approval Agency	Contact Material	Contact Rating (Current)	Termination Style	Mounting Type	Contact Form
Phoenix Contact 2961121	85 °C	-40 °C	Non Latching	7 mA	250 VAC	24 VDC	General Purpose	1500 VA	3.39 kOhms	5 ms	2.5 ms	cULus EAC UR	Gold (Au) Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
Phoenix Contact 2961192	85 °C	-40 °C	Non Latching	17 mA	250 VAC 250 VDC	24 VDC	General Purpose		1440 Ohms	7 ms	3 ms	cULus EAC UR	Silver Nickel (AgNi)	8 A	PC Pin	Through Hole	DPDT (2 Form C)
Phoenix Contact 2961150	85 °C	-40 °C	Non Latching	14 mA	250 VAC 250 VDC	12 VDC	General Purpose		848 Ohms	5 ms	2.5 ms	cULus EAC UR	Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
Phoenix Contact 2961163	85 °C	-40 °C	Non Latching	14 mA	250 VAC 250 VDC	12 VDC	General Purpose		848 Ohms	5 ms	2.5 ms	cULus EAC UR	Gold (Au) Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
