2961121
ActivePhoenix Contact

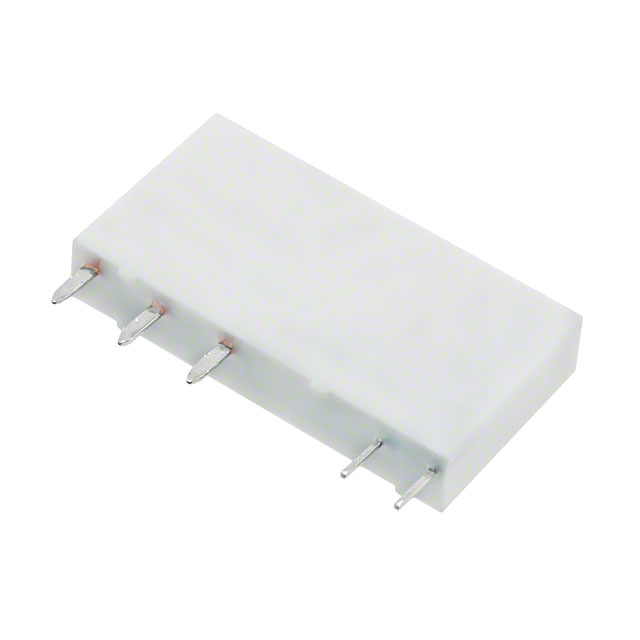

POWER RELAY, SPDT, 24 VDC, 50 MA, REL-MR SERIES, THROUGH HOLE, NON LATCHING
Deep-Dive with AI
Search across all available documentation for this part.
2961121
ActivePhoenix Contact
POWER RELAY, SPDT, 24 VDC, 50 MA, REL-MR SERIES, THROUGH HOLE, NON LATCHING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2961121 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Coil Current | 7 mA |
| Coil Resistance | 3.39 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Load - Max Switching | 1500 VA |
| Mounting Type | Through Hole |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 2.5 ms |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29611 Series
The 2961121 is a plug-in miniature Power Relay with SPDT multi-layer gold silver tin oxide contact, non latching coil and solder through hole terminals. This REL-MR-series relay features safe isolation according to DIN EN 50178 between coil and contact.
