15828362701000

Active

HARTING Technology Group

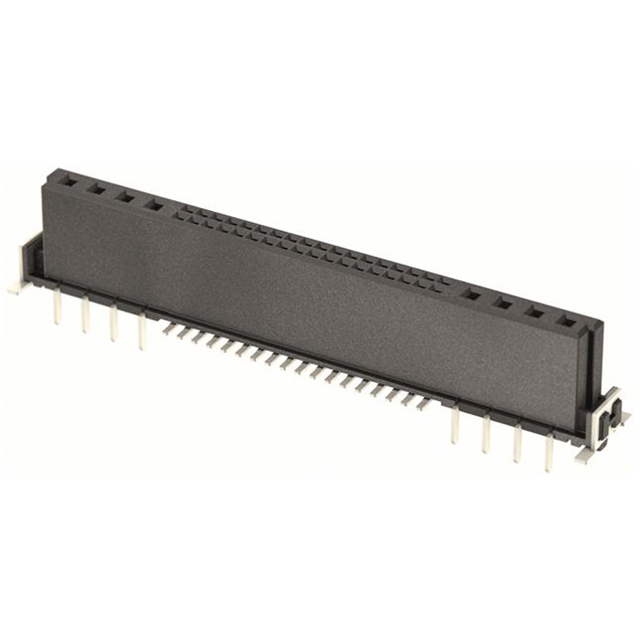

CONN SOCKET STRIP F 8POWER/36SIGNAL POS 2.54MM/1.27MM SOLDER ST TOP ENTRY SMD/THRU-HOLE HAR-FLEX® REEL

Deep-Dive with AI

Documents15828362701000 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15828362701000

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square, Rectangular
Contact Type	Female Socket
Current Rating (Amps)	21.5 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height [z]	0.356 in
Insulation Height [z]	9.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Through Hole
Number of Positions [custom]	8
Number of Positions [custom]	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	50 VAC, 120 VDC

har-flex-r-hybrid Series

Part	Contact Finish - Mating	Termination	Features	Current Rating (Amps)	Connector Type	Contact Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Insulation Material	Fastening Type	Mounting Type	Contact Shape	Voltage Rating	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Shrouding	Number of Rows	Insulation Color	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Applications	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
HARTING Technology Group 15724162601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	16	4	Copper Alloy
HARTING Technology Group 15824162601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Receptacle	Female Socket					Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All		2	Black	16	4	Copper Alloy	General Purpose	0.356 in	9.05 mm
HARTING Technology Group 15728362601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy
HARTING Technology Group 15758362601000	Gold	Solder	Board Guide Solder Retention	22.5 A	Header	Male Blade Male Pin	4.24 mm	0.167 in			Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy
HARTING Technology Group 15828362701000	Gold	Solder	Board Guide Pick and Place Solder Retention	21.5 A	Receptacle	Female Socket					Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Through Hole	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All		2	Black	36	8	Copper Alloy	General Purpose	0.356 in	9.05 mm	2.5 mm	0.098 in
HARTING Technology Group 15728362701000	Gold	Solder	Board Guide Pick and Place Solder Retention	21.5 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Through Hole	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1335.73
Digikey	Cut Tape (CT)	1	$ 11.51
		10	$ 9.78
		100	$ 8.37
	Digi-Reel®	1	$ 11.51
		10	$ 9.78
		100	$ 8.37
	Tape & Reel (TR)	200	$ 7.92
		400	$ 7.54
		600	$ 7.33
		1000	$ 7.07
		1400	$ 6.90

Description

General part information

har-flex-r-hybrid Series

44 (36 + 8 Power) Position Receptacle Connector Surface Mount, Through Hole Gold
