15728362601000

Active

HARTING Technology Group

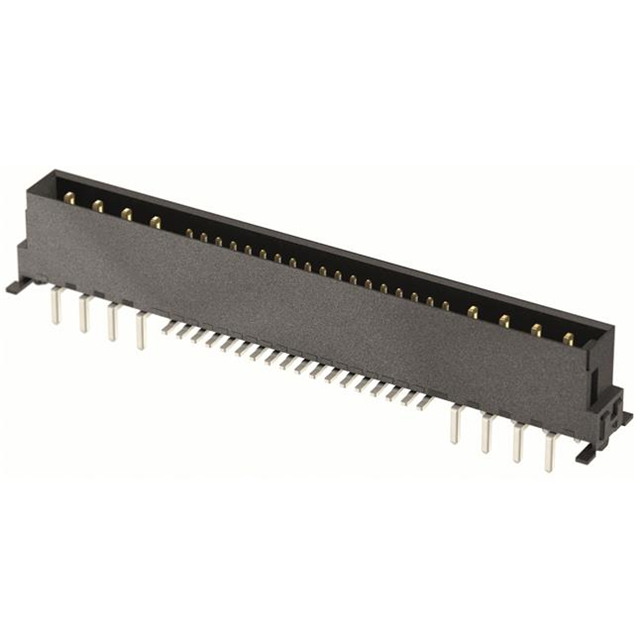

CONNECTOR: PCB TO PCB; SOCKET; MALE; PIN: 44(8+36); STRAIGHT; SMT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 15728362601000 Prod Declaration Cert

15728362601000

Active

HARTING Technology Group

CONNECTOR: PCB TO PCB; SOCKET; MALE; PIN: 44(8+36); STRAIGHT; SMT

Deep-Dive with AI

DocumentsDatasheet 15728362601000 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15728362601000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.181 in
Contact Length - Mating	4.6 mm
Contact Material	Copper Alloy
Contact Shape	Square, Rectangular
Contact Type	Male Pin, Male Blade
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	8.1 mm
Insulation Height	0.319 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions [custom]	8
Number of Positions [custom]	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	50 VAC, 120 VDC

har-flex-r-hybrid Series

Part	Contact Finish - Mating	Termination	Features	Current Rating (Amps)	Connector Type	Contact Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Insulation Material	Fastening Type	Mounting Type	Contact Shape	Voltage Rating	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Shrouding	Number of Rows	Insulation Color	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Applications	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
HARTING Technology Group 15724162601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	16	4	Copper Alloy
HARTING Technology Group 15824162601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Receptacle	Female Socket					Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All		2	Black	16	4	Copper Alloy	General Purpose	0.356 in	9.05 mm
HARTING Technology Group 15728362601000	Gold	Solder	Board Guide Pick and Place Solder Retention	20 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy
HARTING Technology Group 15758362601000	Gold	Solder	Board Guide Solder Retention	22.5 A	Header	Male Blade Male Pin	4.24 mm	0.167 in			Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy
HARTING Technology Group 15828362701000	Gold	Solder	Board Guide Pick and Place Solder Retention	21.5 A	Receptacle	Female Socket					Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Through Hole	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All		2	Black	36	8	Copper Alloy	General Purpose	0.356 in	9.05 mm	2.5 mm	0.098 in
HARTING Technology Group 15728362701000	Gold	Solder	Board Guide Pick and Place Solder Retention	21.5 A	Header	Male Blade Male Pin	8.1 mm	0.319 in	0.181 in	4.6 mm	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Through Hole	Rectangular Square	50 VAC 120 VDC	Board to Board Cable	Tin	-55 °C	125 °C	UL94 V-0	All	Shrouded - 4 Wall	2	Black	36	8	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 14.88
		10	$ 10.75
		100	$ 8.14
	Digi-Reel®	1	$ 14.88
		10	$ 10.75
		100	$ 8.14
	Tape & Reel (TR)	280	$ 7.30

Description

General part information

har-flex-r-hybrid Series

Connector Header Surface Mount 44 (36 + 8 Power) position

Documents

Technical documentation and resources

Datasheet

15728362601000 Prod Declaration Cert

Datasheet
