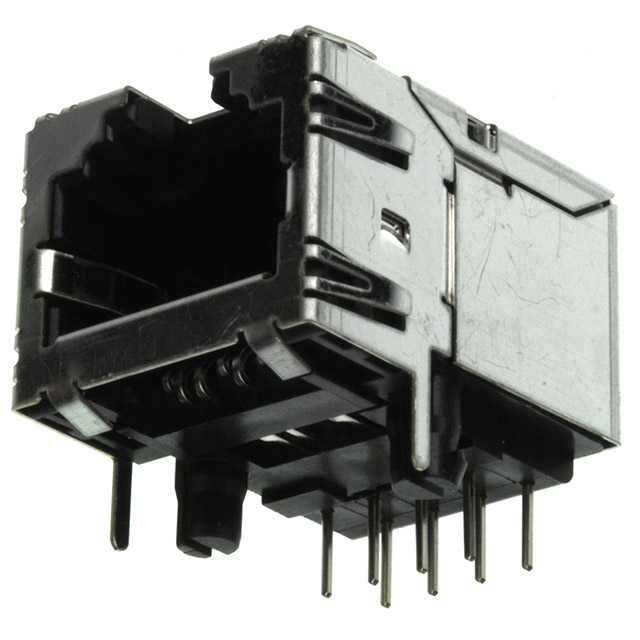

TM21R-5C-88(50)

Active

Hirose Electric USA, Inc.

TELECOM AND DATACOM CONNECTOR, 8 CONTACT(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, LOCKING, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

TELECOM AND DATACOM CONNECTOR, 8 CONTACT(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, LOCKING, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	TM21R-5C-88(50)

Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	LED Color	Housing Material	Termination	Number of Ports	Orientation	Tab Direction	Contact Material	Mounting Type	Number of Positions/Contacts	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish	Ratings	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Orientation	Features
Hirose Electric USA, Inc. TM21R-3C-88(51)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1	Vertical	User Selectable	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1	50 µin	1.27 µm
Hirose Electric USA, Inc. TM21R-5C-88-LP(51)	Does Not Contain LED		Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger		Cat5e	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5A-3232-LP(51)	Does Not Contain LED		Solder	4		Down	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger	Gold	Cat5	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5C-88-DIR	Does Not Contain LED		Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger	Gold	Cat5	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5C-88-LP(50)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1			90 °	Board Lock Light Pipe
Hirose Electric USA, Inc. TM21R-5C-88(50)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1			90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
