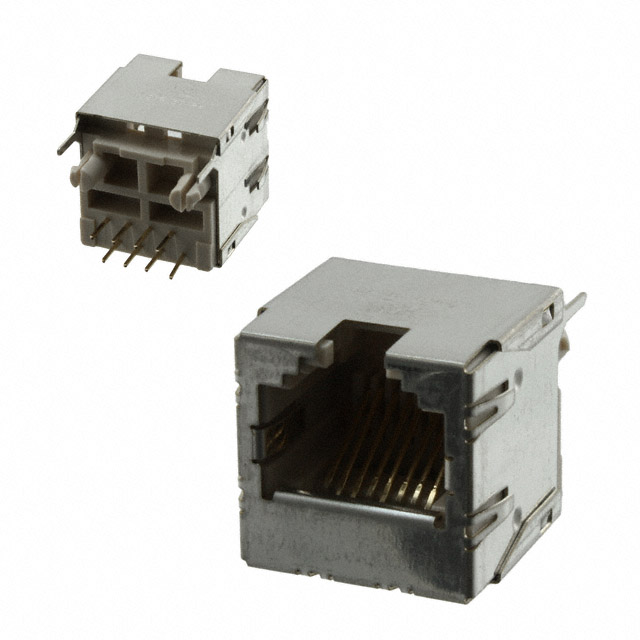

TM21R-3C-88(51)

Active

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C VERT SHIELDED

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD JACK 8P8C VERT SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM21R-3C-88(51)

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	Vertical
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	User Selectable
Termination	Solder

Part	LED Color	Housing Material	Termination	Number of Ports	Orientation	Tab Direction	Contact Material	Mounting Type	Number of Positions/Contacts	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish	Ratings	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Orientation	Features
Hirose Electric USA, Inc. TM21R-3C-88(51)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1	Vertical	User Selectable	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1	50 µin	1.27 µm
Hirose Electric USA, Inc. TM21R-5C-88-LP(51)	Does Not Contain LED		Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger		Cat5e	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5A-3232-LP(51)	Does Not Contain LED		Solder	4		Down	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger	Gold	Cat5	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5C-88-DIR	Does Not Contain LED		Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-55 °C	85 °C	Shielded EMI Finger	Gold	Cat5	1	50 µin	1.27 µm	90 °
Hirose Electric USA, Inc. TM21R-5C-88-LP(50)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1			90 °	Board Lock Light Pipe
Hirose Electric USA, Inc. TM21R-5C-88(50)	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Solder	1		Up	Copper Alloy	Through Hole	8p8c (RJ45 Ethernet)	Jack	-25 °C	80 C	Shielded EMI Finger	Gold	Cat5e	1			90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded, EMI Finger Cat5e
