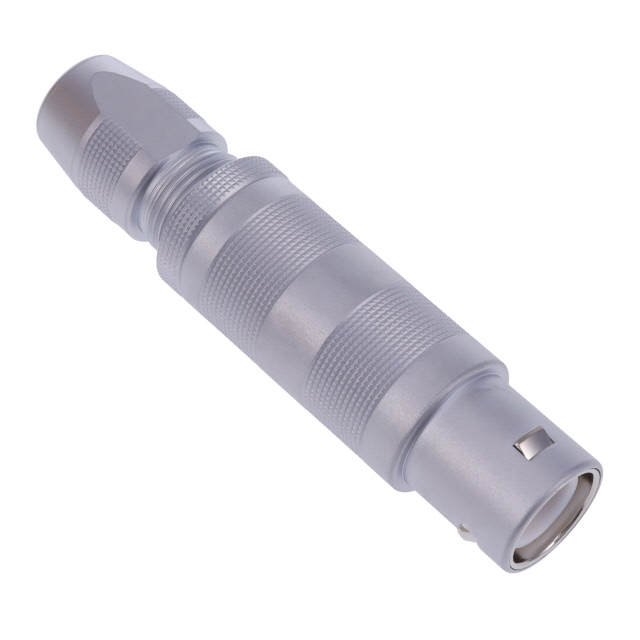

FFB.3S.415.CTAC57

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.3S.415.CTAC57

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB.3S.415.CTAC57

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	5.7 mm
Cable Opening [custom]	4.3 mm
Cable Opening [custom]	0.224 in, 0.169 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	415
Shielding	Shielded

FFB.3S Series

Part	Shielding	Contact Finish - Mating	Ingress Protection	Shell Finish	Fastening Type	Number of Positions	Current Rating (Amps)	Shell Size - Insert	Color	Shell Material	Orientation	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insert Material	Connector Type	Backshell Material, Plating	Primary Material	Material	Accessory Type	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating
LEMO FFB.3S.405.CTLC82	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Bronze	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Female Sockets Plug	Brass Chrome	Metal
LEMO FFB.3S.135.LC									Silver												Brass	Back-Nut Collet	3S Series Connector
LEMO FFB.3S.131.LC									Silver												Brass	Back-Nut Collet	3S Series Connector
LEMO FFB.3S.405.CTAC11Z	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.405.CTAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.415.CTAC52	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				4.3 mm		5.7 mm	0.169 in 0.224 in
LEMO FFB.3S.415.CTAC57	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				4.3 mm		5.7 mm	0.169 in 0.224 in
LEMO FFB.3S.410.CTAC62	Shielded	Gold	IP50	Chrome	Push-Pull	1	10 A	410	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal
LEMO FFB.3S.415.CTAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.140.CLAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	43 A	140	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polyetheretherketone (PEEK)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in			UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 98.37
		10	$ 90.27
		25	$ 86.79
		50	$ 83.90
		100	$ 79.27
LCSC	Piece	1	$ 87.95
		200	$ 35.09
		500	$ 33.92
		1000	$ 33.34

Description

General part information

FFB.3S Series

1 Position Circular Connector Plug, Male Pins Solder Cup
