FFB.3S.410.CTAC62

Active

LEMO

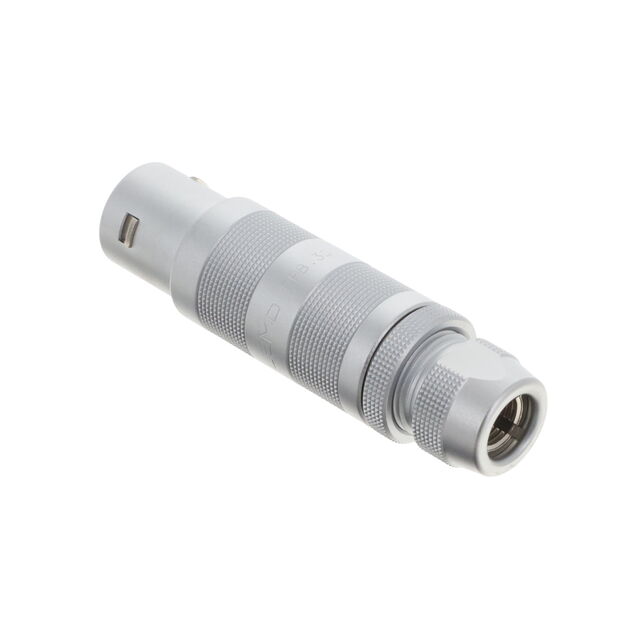

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.3S.410.CTAC62

Active

LEMO

CONN PLUG MALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB.3S.410.CTAC62

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	410
Shielding	Shielded

FFB.3S Series

Part	Shielding	Contact Finish - Mating	Ingress Protection	Shell Finish	Fastening Type	Number of Positions	Current Rating (Amps)	Shell Size - Insert	Color	Shell Material	Orientation	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insert Material	Connector Type	Backshell Material, Plating	Primary Material	Material	Accessory Type	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating
LEMO FFB.3S.405.CTLC82	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Bronze	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Female Sockets Plug	Brass Chrome	Metal
LEMO FFB.3S.135.LC									Silver												Brass	Back-Nut Collet	3S Series Connector
LEMO FFB.3S.131.LC									Silver												Brass	Back-Nut Collet	3S Series Connector
LEMO FFB.3S.405.CTAC11Z	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.405.CTAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	15 A	405	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.415.CTAC52	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				4.3 mm		5.7 mm	0.169 in 0.224 in
LEMO FFB.3S.415.CTAC57	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				4.3 mm		5.7 mm	0.169 in 0.224 in
LEMO FFB.3S.410.CTAC62	Shielded	Gold	IP50	Chrome	Push-Pull	1	10 A	410	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal
LEMO FFB.3S.415.CTAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	8 A	415	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polytetrafluoroethylene (PTFE)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in
LEMO FFB.3S.140.CLAC11	Shielded	Gold	IP50	Chrome	Push-Pull	1	43 A	140	Silver	Brass	Keyed	Free Hanging (In-Line)	Brass	-55 °C	250 °C	Backshell	Polyetheretherketone (PEEK)	Male Pins Plug	Brass Chrome	Metal				9.8 mm 10.5 mm	0.386 in 0.413 in			UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.70
		10	$ 90.13
		25	$ 82.04
		50	$ 76.59
		100	$ 71.66

Description

General part information

FFB.3S Series

1 Position Circular Connector Plug, Male Pins Solder Cup
