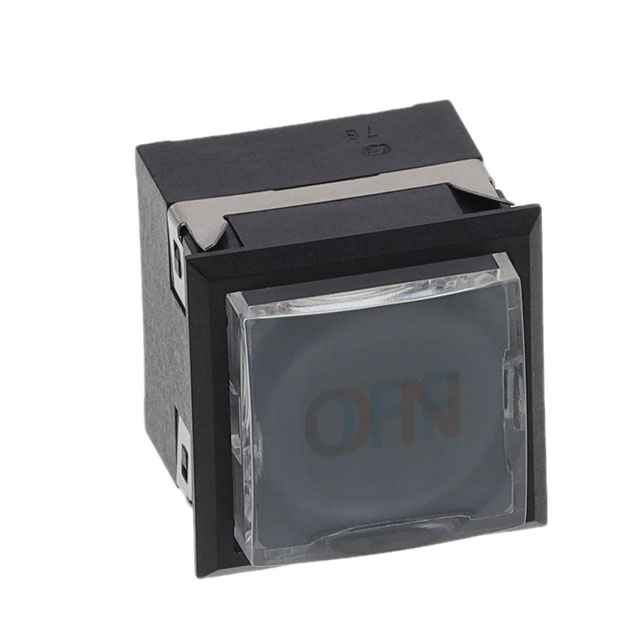

UB215KKW016DG-4JDG11

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUB2 Indicators Datasheet

UB215KKW016DG-4JDG11

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsUB2 Indicators Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB215KKW016DG-4JDG11

Actuator Marking	ON/OFF
Actuator Type	Button, Alternating Legend, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Illumination Voltage (Nominal)	2 VDC, 2.8 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	17.4 mm
Panel Cutout Dimensions [y]	17.4 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB215KK Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Illumination Voltage (Nominal)	Actuator Type	Actuator Marking	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Termination Style	Type	Features	Illumination Type, Color
NKK Switches UB215KKW016DG-4JDG11	17.4 mm	17.4 mm	10000 Cycles	2 VDC 2.8 VDC	Alternating Legend Button Square	ON/OFF	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard
NKK Switches UB215KKG01N	17.4 mm	17.4 mm	200000 Cycles		Plunger for Cap	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	70 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom		Solder Lug	Standard	Pulse 300 ms
NKK Switches UB215KKW01N	17.4 mm	17.4 mm	10000 Cycles		Plunger for Cap	No Marking	30 V	Panel Mount Snap-In	125 V	SPDT	70 °C	-25 °C	1000000 Cycles	5 A	On-Mom		Solder Lug	Standard	RTV Adhesive Sealant on Terminals
NKK Switches UB215KKG015C-3JB	17.4 mm	17.4 mm	200000 Cycles	1.85 VDC	Button Square	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard	Process Sealed	LED Red
NKK Switches UB215KKG016CF-5JCF11	17.4 mm	17.4 mm	200000 Cycles	2.1 VDC 3.5 VDC	Alternating Legend Button Square	ON/OFF	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard		Green/Red LED
NKK Switches UB215KKG015C-3JF	17.4 mm	17.4 mm	200000 Cycles	1.85 VDC	Button Square	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard	Process Sealed	LED Red
NKK Switches UB215KKG015D	17.4 mm	17.4 mm	200000 Cycles	2 VDC	Plunger for Cap	No Marking	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom		Solder Lug	Illuminated Standard	Process Sealed	Amber LED
NKK Switches UB215KKW016CF-4JCF11	17.4 mm	17.4 mm	10000 Cycles	2.1 VDC 3.5 VDC	Alternating Legend Button Square	ON/OFF	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard		Green/Red LED
NKK Switches UB215KKW016F-1JF	17.4 mm	17.4 mm	10000 Cycles	3.5 VDC	Button Square	No Marking	30 V	Panel Mount Snap-In	125 V	SPDT	50 °C	-25 °C	1000000 Cycles	5 A	On-Mom	Clear	Solder Lug	Illuminated Standard	RTV Adhesive Sealant on Terminals	Green LED
NKK Switches UB215KKG016DG-5JDG11	17.4 mm	17.4 mm	200000 Cycles	2 VDC 2.8 VDC	Alternating Legend Button Square	ON/OFF	28 V	Panel Mount Snap-In	28 V	SPDT	50 °C	-25 °C	1000000 Cycles	0.4 VA	On-Mom	Clear	Solder Lug	Illuminated Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.45
Newark	Each	1	$ 46.37
		5	$ 41.35
		10	$ 39.94
		25	$ 37.74
		50	$ 35.13
		100	$ 31.11
		250	$ 27.90

Description

General part information

UB215KK Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

UB2 Indicators

Datasheet
