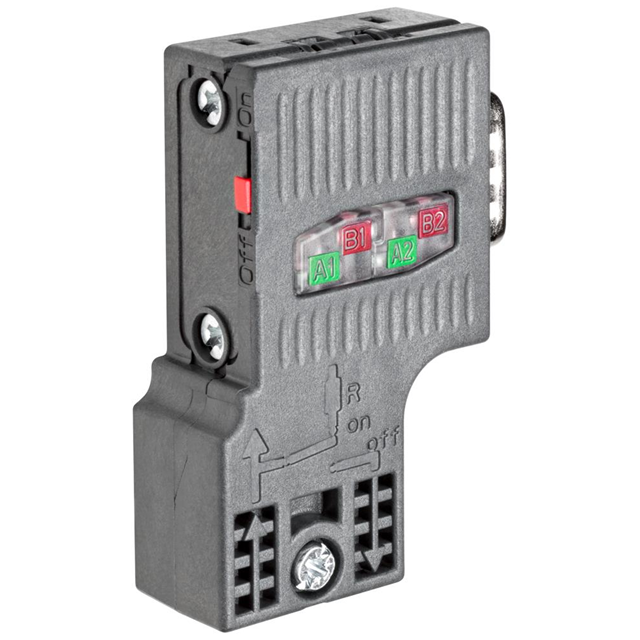

6ES79720BA520XB0

Active

Siemens

PB CONNECTOR, 90 DEGREE, W/O PG

Search across all available documentation for this part.

Active

Siemens

PB CONNECTOR, 90 DEGREE, W/O PG

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Connector Style	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Type	Number of Rows	Features	Accessory Type
Siemens 6ES79720AB010XA0	SIMATIC S7	Screw Terminal	DIN Rail	60 °C	0 °C	20.4 V	28.8 VDC
Siemens 6ES79720BA610XA0			Free Hanging (In-Line)	60 °C	-25 °C			D-Sub	9	DE E	1	Male Pins Plug	Signal	2	Strain Relief
Siemens 6ES79720DA000AA0																Terminating Resistor
Siemens 6ES79720BA300XA0			Free Hanging (In-Line)	60 °C	-25 °C			D-Sub	9	DE E	1	Male Pins Plug	Signal	2	Strain Relief
Siemens 6ES79720BB520XB0				60 °C	0 °C			D-Sub				Male Pins Plug
Siemens 6ES79720BB700XA0															Grounding Indents
Siemens 6ES79720BA520XB0				60 °C	0 °C			D-Sub				Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10564.03

General part information

Position D-Sub Plug, Male Pins Connector
