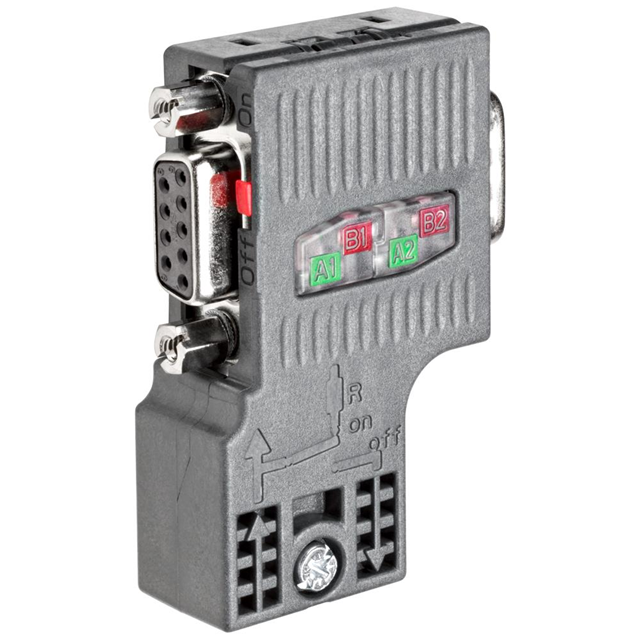

6ES79720BB520XB0

Active

Siemens

PB CONNECTOR. 90 DEGREE. WITH PG

Search across all available documentation for this part.

Active

Siemens

PB CONNECTOR. 90 DEGREE. WITH PG

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Connector Style	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Type	Number of Rows	Features	Accessory Type
Siemens 6ES79720AB010XA0	SIMATIC S7	Screw Terminal	DIN Rail	60 °C	0 °C	20.4 V	28.8 VDC
Siemens 6ES79720BA610XA0			Free Hanging (In-Line)	60 °C	-25 °C			D-Sub	9	DE E	1	Male Pins Plug	Signal	2	Strain Relief
Siemens 6ES79720DA000AA0																Terminating Resistor
Siemens 6ES79720BA300XA0			Free Hanging (In-Line)	60 °C	-25 °C			D-Sub	9	DE E	1	Male Pins Plug	Signal	2	Strain Relief
Siemens 6ES79720BB520XB0				60 °C	0 °C			D-Sub				Male Pins Plug
Siemens 6ES79720BB700XA0															Grounding Indents
Siemens 6ES79720BA520XB0				60 °C	0 °C			D-Sub				Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9681.62

General part information

Position D-Sub Plug, Male Pins Connector
