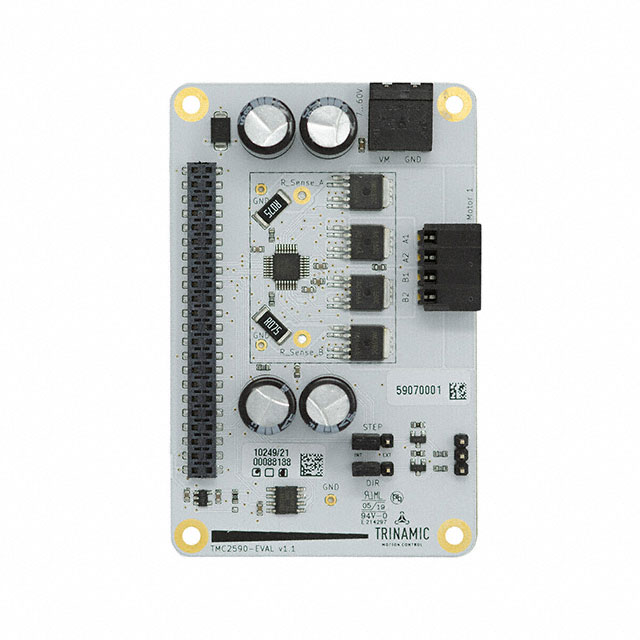

TMC2590-EVAL

Obsolete

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2590

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC2590

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Primary Attributes	Type	Supplied Contents	Secondary Attributes	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Step Resolution [Max]	Step Resolution [Min]	Output Configuration	Motor Type - Stepper	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Package / Case	Interface	Mounting Type	Function	Motor Type - AC, DC
Analog Devices Inc./Maxim Integrated TMC2590-BOB40	TMC2590	Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)
Analog Devices Inc./Maxim Integrated TMC2590-TA-T						Power MOSFET	5.25 V	3 V	Printer	32-TQFP-EP (5x5)	60 V	5 V	1	0.00390625	Half Bridge (4)	Bipolar	-40 °C	125 ¯C	8 A	32-TQFP Exposed Pad	SPI Step/Direction	Surface Mount	Driver - Fully Integrated Control and Power Stage	Universal
Analog Devices Inc./Maxim Integrated TMC2590-EVAL	TMC2590	Motors (Stepper)	Power Management	Board(s)	SPI Interface(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.86

General part information

TMC2590 Motor Controller/Driver, Stepper Power Management Evaluation Board

Technical documentation and resources

No documents available
