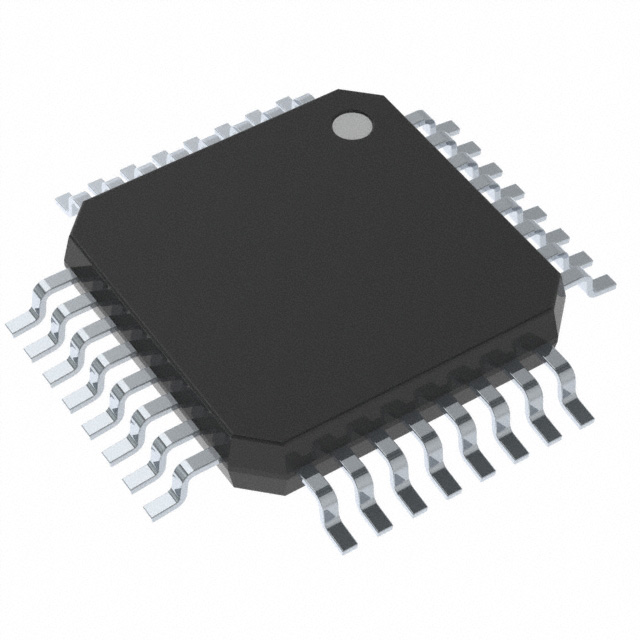

TMC2590-TA-T
ObsoleteAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPOLAR 5-60V 32TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2590-TA-T
ObsoleteAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPOLAR 5-60V 32TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC2590-TA-T |
|---|---|
| Applications | Printer |
| Current - Output | 8 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Step/Direction, SPI |
| Motor Type - AC, DC | Universal |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 32-TQFP Exposed Pad |
| Step Resolution [Max] | 1 |
| Step Resolution [Min] | 0.00390625 |
| Supplier Device Package | 32-TQFP-EP (5x5) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 5 V |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.49 | |
| Digi-Reel® | 1 | $ 2.49 | ||
| Tape & Reel (TR) | 2000 | $ 2.47 | ||
| 4000 | $ 2.47 | |||
Description
General part information
TMC2590 Series
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 32-TQFP-EP (5x5)
